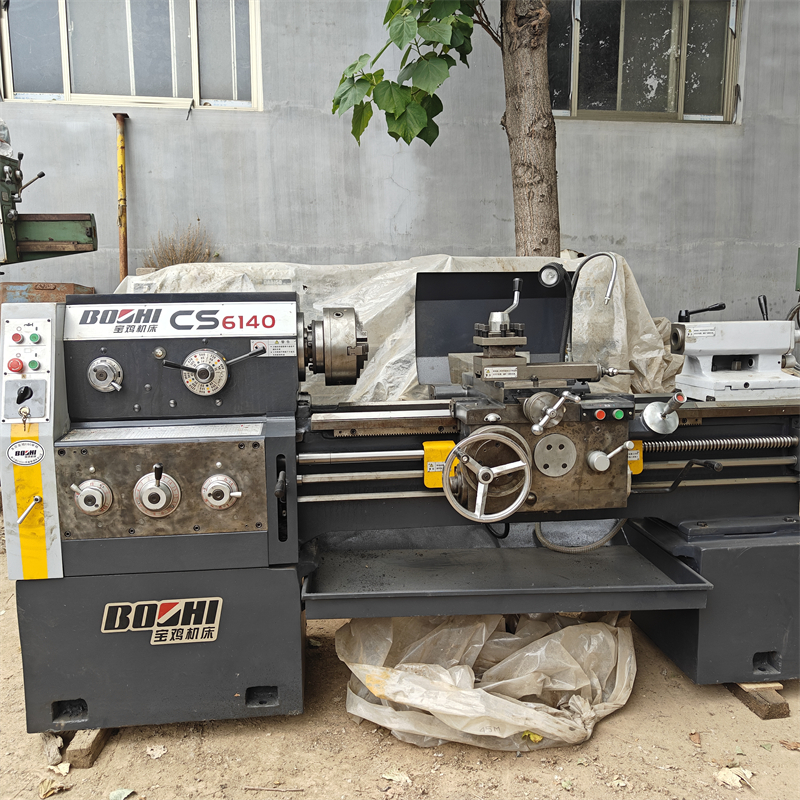

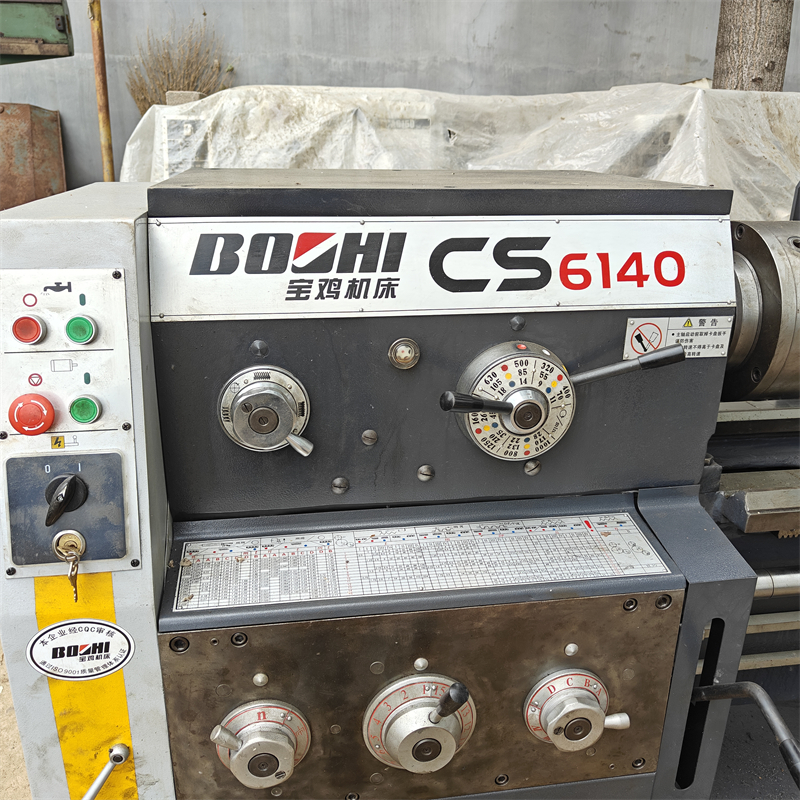

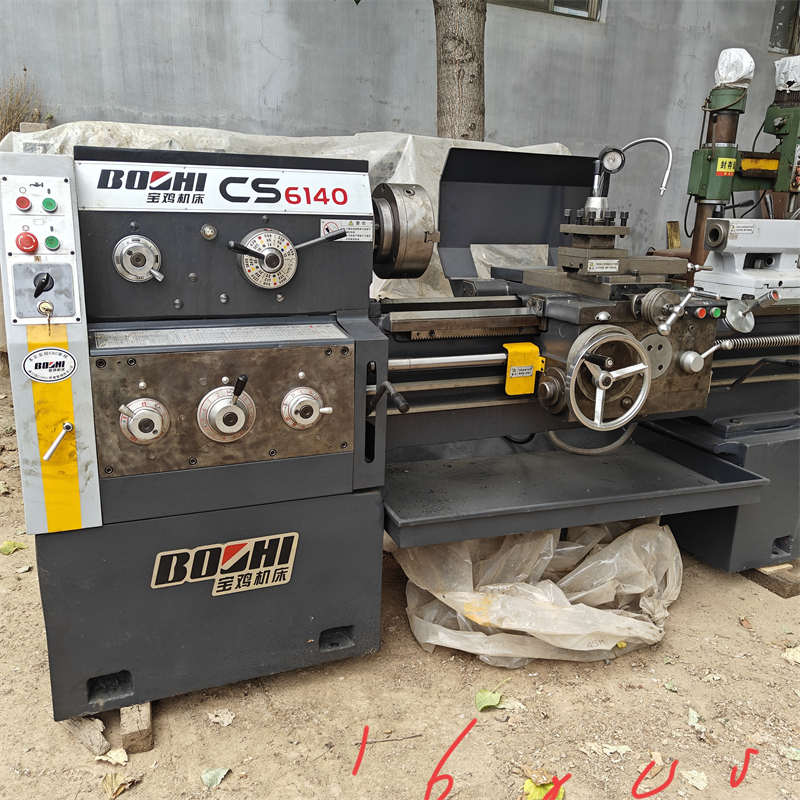

Baoji 6140 Lathe

Application Scenarios
General Machinery Manufacturing: Processing small to medium-sized shafts, sleeves, flanges, and threaded parts for general industrial equipment.
Automotive & Motorcycle Parts Production: Batch machining of auto components like bearing sleeves, gear shafts, and connecting rods.
Hardware & Precision Instrument Processing: Fabricating precision parts such as instrument shafts, valve cores, and hardware fittings with high accuracy.
Small-Batch & Workshop Production: Suitable for single-piece or small-batch processing in small factories, workshops, and vocational training institutions.

2,600.00$

Core Parameters

  • Bed Length: 1000mm / 1500mm / 2000mm (optional, standard 1m)
  • Maximum Workpiece Diameter: 400mm
  • Maximum Workpiece Length: 800mm / 1300mm / 1800mm (matching bed length, effective machining length)
  • Spindle Speed Range: 11-1600rpm
  • Spindle Through Hole Diameter: 52mm
  • Motor Power: 5.5kW
  • Carriage Feed Rate: 0.02-5mm/r
  • Tool Post Quantity: 4-station (manual)
  • Machine Weight: Approx. 2200kg (1m bed) / 2800kg (1.5m bed)
  • Spindle Radial Runout: ≤0.01mm
