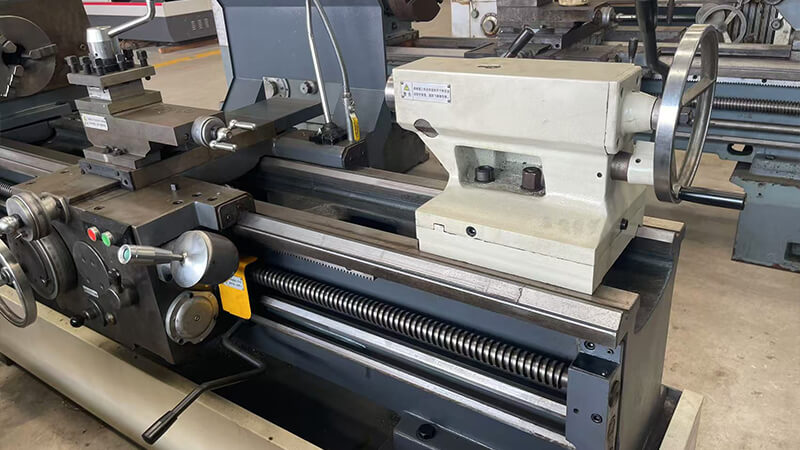

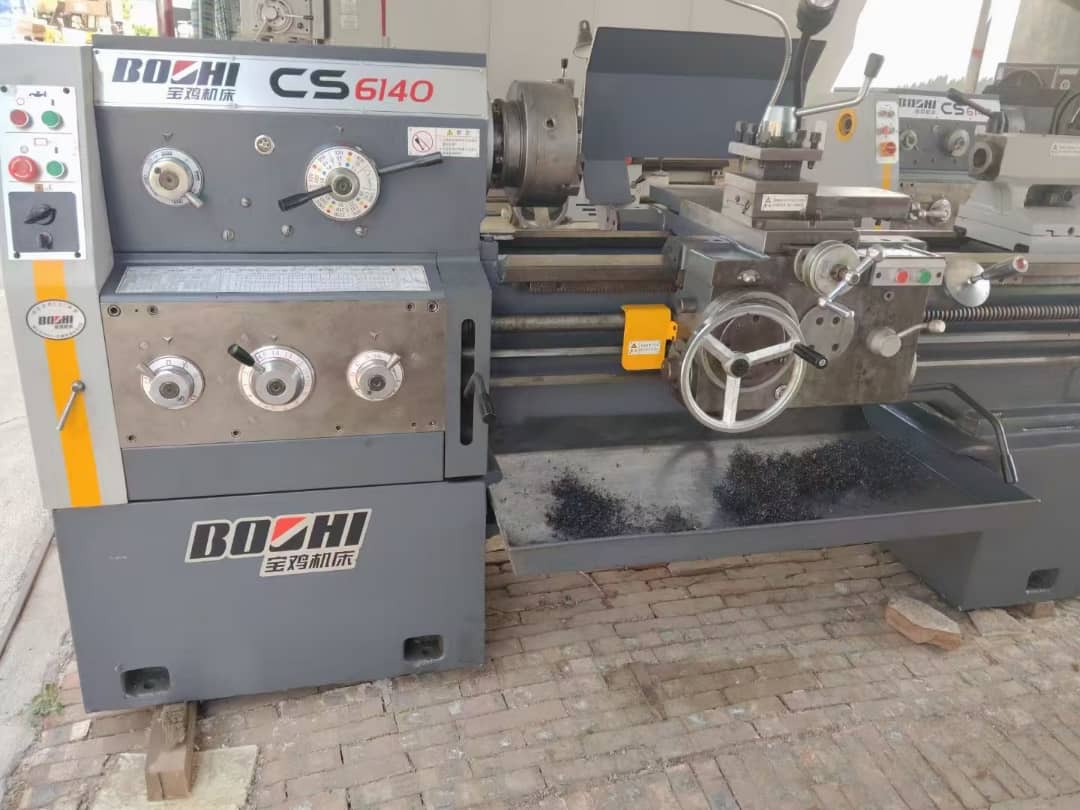

Baoji cs6140

1. Stable & Durable Structural Performance
Constructed with high-quality cast iron for the bed, headstock, and saddle, ensuring strong structural rigidity and minimal deformation under heavy loads.
The precision-machined spindle system (equipped with high-grade bearings) maintains low vibration during high-speed operation, extending the machine’s service life.
2. Reliable Machining Precision
Offers multi-level spindle speeds and fine feed adjustments, enabling accurate turning of metal parts with tight tolerances (up to IT6-IT7 for workpiece precision).
Supports diverse thread machining (metric, inch) without frequent tool changes, reducing errors and improving processing consistency.
3. Versatile Application Scope
The gap-bed design allows processing of large-diameter workpieces (up to φ630 mm in the gap), suitable for both small-batch customization and medium-volume production.
Capable of multiple operations: external/internal turning, facing, taper turning, drilling, boring, and grooving, meeting needs for metal (steel, aluminum, brass) processing.

2,800.00$

Attribute Category	Specification Details
Model Name	BAOJI CS6140
Machine Type	Horizontal Gap-Bed Manual Lathe
Maximum Swing Diameter	φ400 mm (over the bed); φ630 mm (in the gap)
Maximum Processing Length	750 mm / 1000 mm / 1500 mm / 2000 mm (optional, based on configuration)
Spindle Bore Diameter	φ52 mm
Spindle Speed Range	10 - 1400 r.p.m (22 levels of adjustable speeds)
Spindle Motor Power	4 kW
Feed Range (Longitudinal/Z-axis)	0.02 - 3.36 mm/r (50 types of feeds)
Feed Range (Transverse/X-axis)	0.01 - 1.68 mm/r (50 types of feeds)
Thread Machining Capacity	Metric threads: 0.5 - 20 mm (44 types); Inch threads: 2 - 72 t.p.i (38 types)
Tool Post Type	Four-station Turret Tool Post (manual indexing)
Power Supply	380 V / 50 Hz (three-phase; 220 V / 60 Hz optional for specific regions)
Net Weight	Approximately 1800 kg - 2500 kg (varies by processing length)
Certifications	ISO 9001, CE
