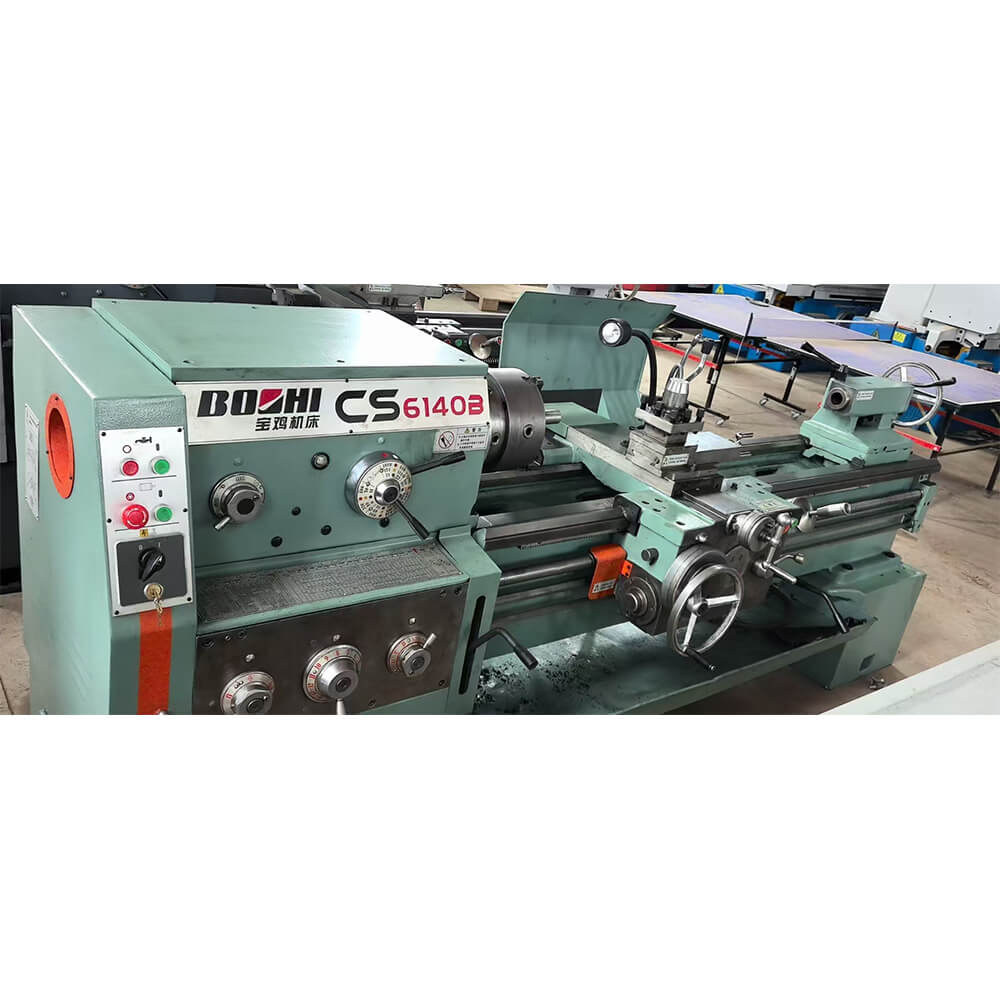

Baoji CS6140B
Specification Variation: Parameters like max. workpiece length have multiple optional configurations. The actual specifications shall be subject to the specific ordered model.
Accuracy Parameters: This model usually includes key accuracy indicators such as spindle radial runout (≤0.01mm) and finish turning outer circle accuracy (IT6-IT7).
Application Scenarios: Mainly used for turning shaft and disk parts, applicable in general machinery manufacturing, auto parts industry, etc.
2,900.00$
| Product Attribute | Specification |
|---|---|
| Machine Model | CS6140B |
| Machine Type | Horizontal Lathe |
| Max. Swing Diameter Over Bed | 400mm |
| Max. Workpiece Length | 750mm / 1000mm / 1500mm (Optional) |
| Spindle Bore Diameter | 52mm |
| Spindle Speed Range | 10-1400r/min (12 Gears) |
| Spindle Nose Model | A2-6 |
| Longitudinal Feed Range | 0.02-3.34mm/r |
| Cross Feed Range | 0.01-1.67mm/r |
| Tool Post | 4-Station Square Tool Post |
| Main Motor Power | 7.5kW |
| Machine Net Weight (750mm Spec) | Approximately 1800kg |
| Overall Dimension (L×W×H, 750mm Spec) | 2420×1120×1280mm |
