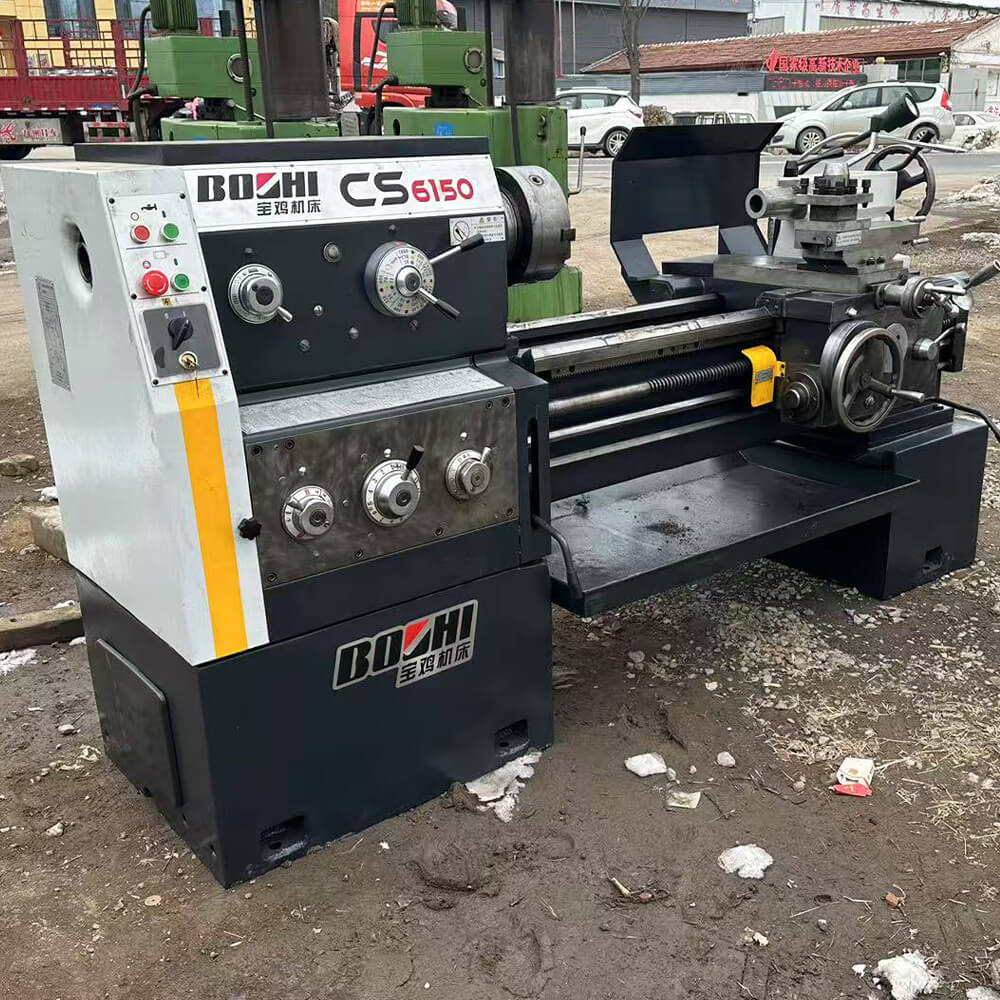

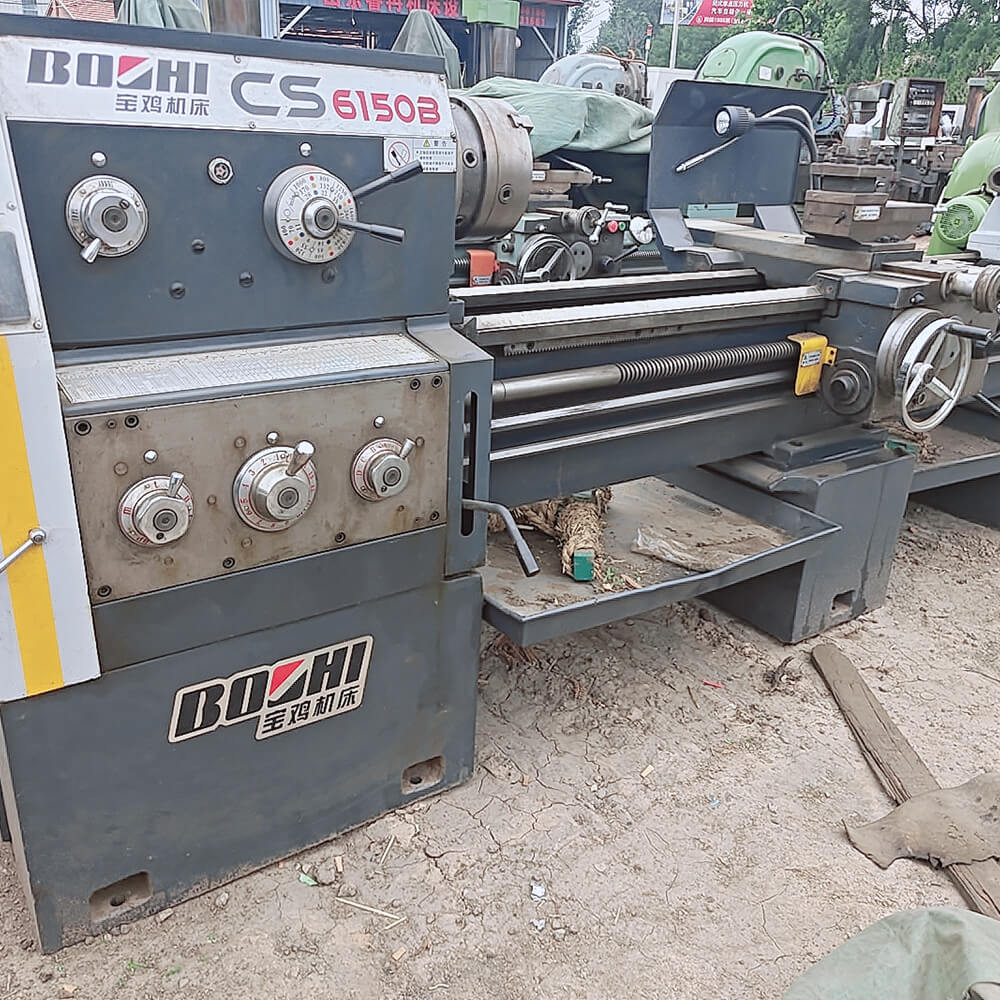

Baoji CS6150B Lathe
Superior Structural Rigidity:The machine is designed using 3D modeling and finite element analysis. Key components such as the bed, headstock and saddle are processed by high-precision CNC equipment, which gives it high rigidity, low thermal deformation, low spindle temperature rise and small vibration. It can withstand large cutting torque and adapt to heavy-duty cutting operations.
High Machining Accuracy and Stability:Optimized structural design and sophisticated manufacturing processes ensure high machining accuracy of the workpiece. It maintains good precision retention during long-term use, which is suitable for processing various precision metal parts such as shafts and sleeves.
Strong Versatility and Wide Applicability:It supports multiple machining operations and various thread turning, meeting the processing needs of different metal workpieces. The dual metric and inch feed systems, as well as optional hand and foot brakes, make it suitable for users from regions with different measurement standards and operating habits.
3,500.00$
| Attribute | English Description |
|---|---|
| Machine Type | Horizontal Heavy-Duty Manual Metal Lathe |
| Spindle Speed Range | 10 - 1600 r.p.m |
| Spindle Bore Diameter | 82 mm |
| Maximum Weight of Workpiece Supported Between Two Centers | 500 kg |
| Power Supply | Voltage: 220V/380V/420V; Frequency: 50Hz/60Hz |
| Machine Weight | 5000 kg |
| Processing Capabilities | Capable of turning inner/outer cylindrical surfaces, end faces and other rotating surfaces; turning metric, inch, module and diametral pitch threads; performing drilling, reaming and groove broaching |
| Feed System | Both metric and inch feed systems are available |
| Brake System | Equipped with hand brake and foot brake |
| Warranty Period | 1 year of free spare parts replacement and online technical support |
| Tool Post Stations | 4 stations |
