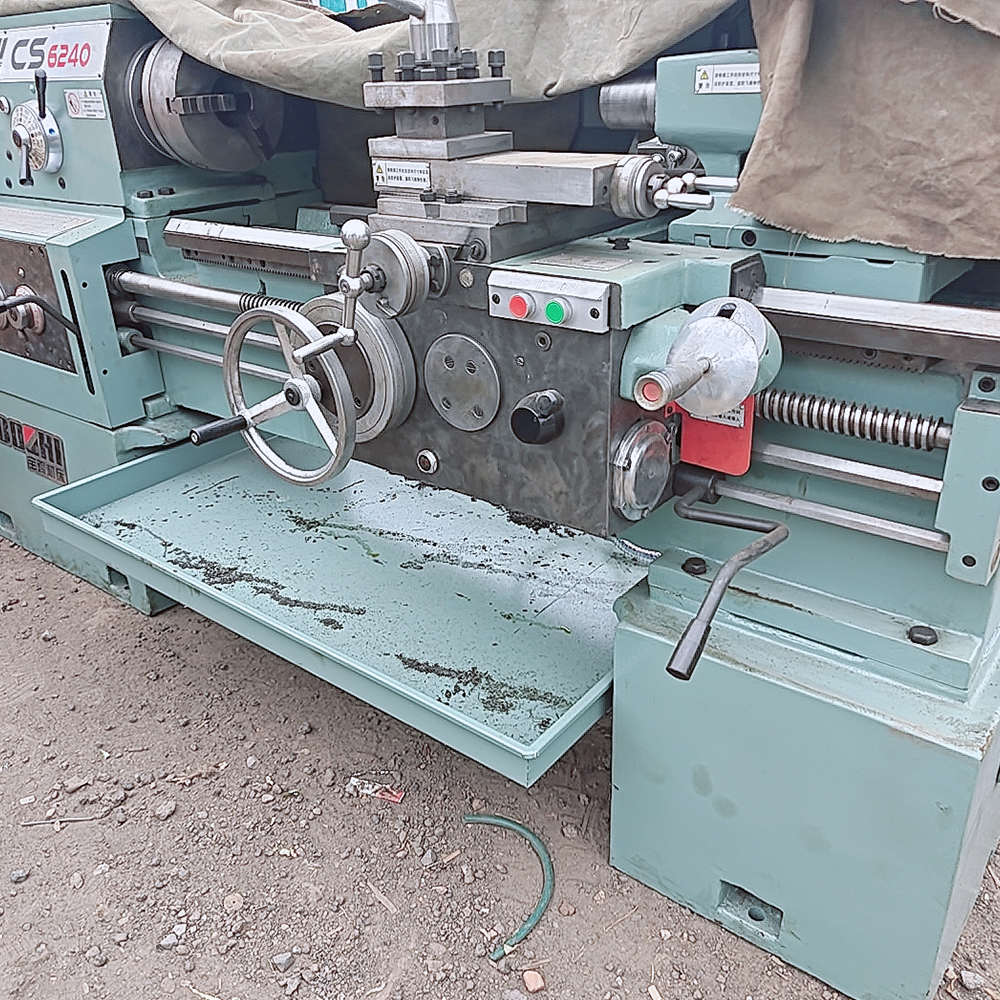

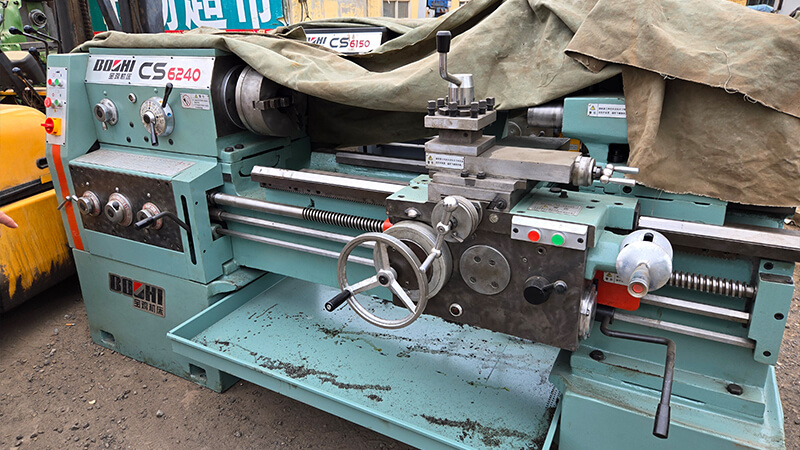

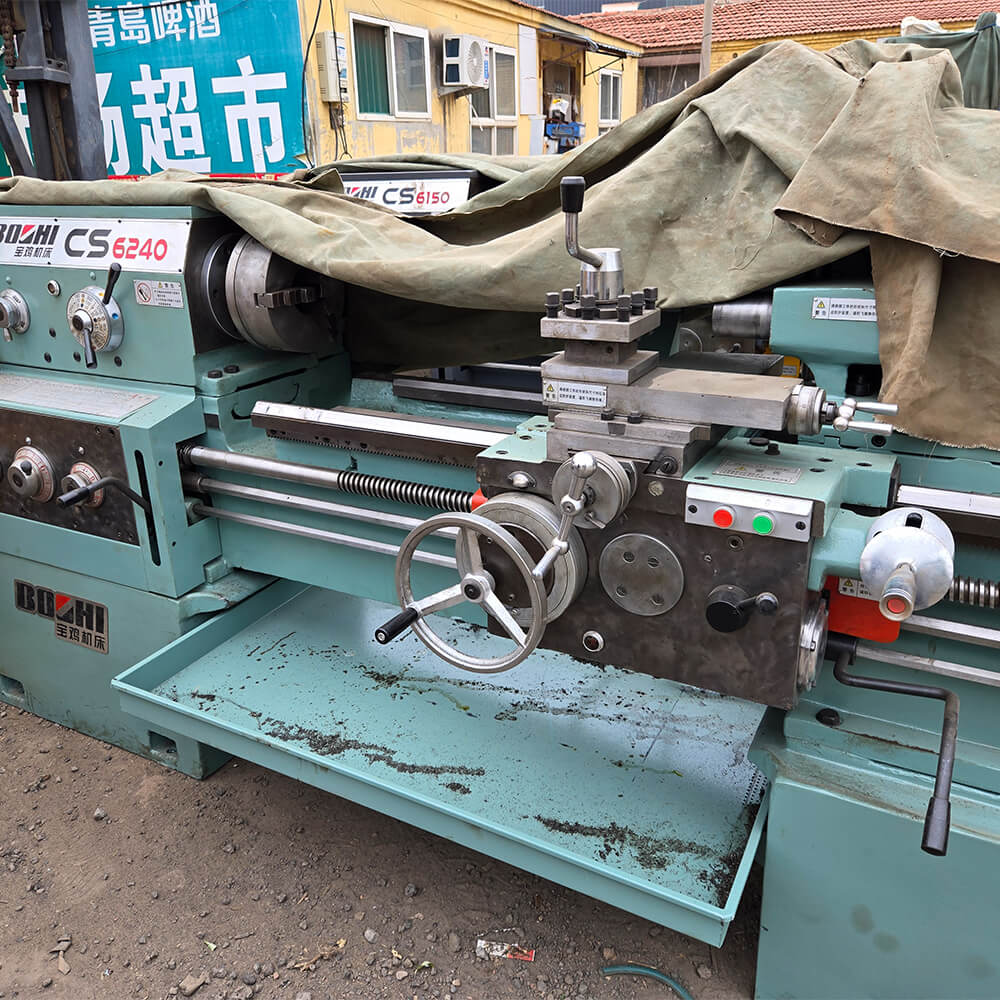

Baoji CS6240 (1500mm model)

Core Functions and Features

Comprehensive Processing Capabilities: It can not only handle conventional conventional machining of rotating parts such as internal/external cylindrical surfaces, end faces, and tapered surfaces, but also perform operations like drilling, reaming, and oil groove broaching. It can even process flat and irregularly shaped parts, meeting diverse processing needs. The gap bed design specifically solves the challenge of machining local sections of large-diameter workpieces.
Strong Adaptability to Multiple Scenarios: Compatible with both metric and imperial feed systems, it supports customized electrical configurations with voltages (e.g., 220V, 380V) and frequencies (50Hz, 60Hz), making it suitable for both domestic use and export to countries with different standards. Additionally, it is equipped with both manual and foot brake systems, catering to the operating habits of different operators.
Low Operation Threshold: Adopting manual control, it features a simple and intuitive structure, ensuring easy maintenance. Spare parts are readily available in the market, resulting in low long-term maintenance costs. Even entry-level operators can quickly master its use, making it ideal for small and medium-sized factories and workshops.

Application Scenarios

This model is commonly used in industries such as mechanical manufacturing, auto parts processing, agricultural machinery component production, and hardware tool manufacturing. It can specifically process shaft parts, disc/sleeve parts (e.g., motor shafts, flanges, bolts, bushings), and is particularly well-suited for small to medium-batch production. In the second-hand machine tool export market, it is highly favored by small processing factories in regions like Africa and Southeast Asia.

4,500.00$

The Baoji CS6240 (1500mm model) refers to a conventional horizontal gap bed lathe with a maximum workpiece processing length of 1500mm. As a classic model in the field of mechanical processing, it is widely used in small and medium-batch processing scenarios due to its strong adaptability and easy operation, and is also a common best-selling model in the second-hand machine tool foreign trade market.

Parameter Category（参数类别）	English Specifications（英文参数）	Chinese Specifications（中文参数）
Processing Dimensions（加工尺寸）	Maximum swing diameter over bed: φ400mmMaximum swing diameter over gap: φ630mmMaximum distance between centers: 1500mmMaximum processing length: ~1450mmMaximum swing diameter over carriage: φ220mm	床身上最大回转直径：φ400mm马鞍内最大回转直径：φ630mm两顶尖间最大距离：1500mm最大加工长度：约 1450mm床鞍上最大回转直径：φ220mm
Spindle Performance（主轴性能）	Spindle through-hole diameter: φ52mmSpindle speed range: 9-1600r/min (24-speed)Spindle motor power: 7.5kWSpindle nose type: ISO 702/Ⅲ No.6	主轴通孔直径：φ52mm主轴转速范围：9-1600r/min（24 级调速）主轴电机功率：7.5kW主轴头型式：ISO 702/Ⅲ No.6
Feeding & Thread Processing（进给与螺纹加工）	Feed rates: 93 typesX-axis feed range: 0.012-2.73mm/rZ-axis feed range: 0.028-6.43mm/rMetric threads: 48 types (0.5-224mm)Imperial threads: 48 types (72-1/4 t.p.i)Additional threads: Module & diametral pitch threads	进给量种类：93 种X 向进给范围：0.012-2.73mm/rZ 向进给范围：0.028-6.43mm/r公制螺纹：48 种（0.5-224mm）英制螺纹：48 种（72-1/4 牙 / 英寸）其他螺纹：模数螺纹、径节螺纹
Key Configurations（关键配置）	Tool post: 4-station (25×25mm tool square)Tailstock sleeve: φ75mm diameter, 150mm stroke, Morse No.5 taperCooling system: Equipped with cooling pump motorBrake mode: Manual + foot brake	刀架：4 工位（刀方尺寸 25×25mm）尾座套筒：直径 φ75mm，行程 150mm，莫氏 5 号锥度冷却系统：配备冷却泵电机刹车方式：手动刹车 + 脚踏刹车

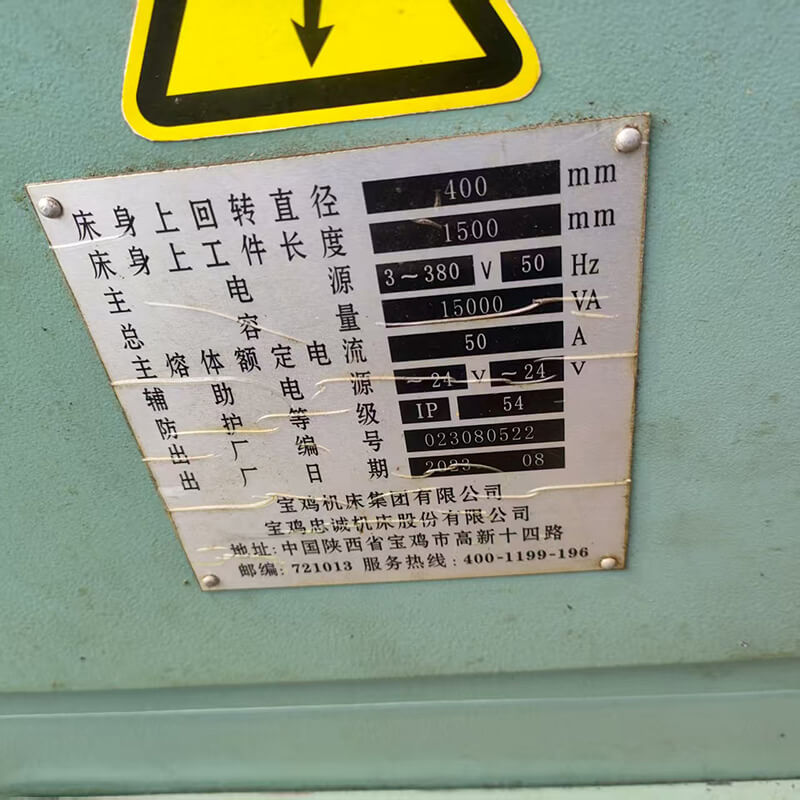

Electrical Specifications（电气规格）	Voltage options: 220V/380V (customizable)Frequency options: 50Hz/60Hz (customizable)	电压选项：220V/380V（可定制）频率选项：50Hz/60Hz（可定制）
