Baoji CS6240 Lathe
Baoji CS6240 Lathe - Image 2
Baoji CS6240 Lathe - Image 3
Baoji CS6240 Lathe - Image 4
Baoji CS6240 Lathe - Image 5
Baoji CS6240 Lathe - Image 6

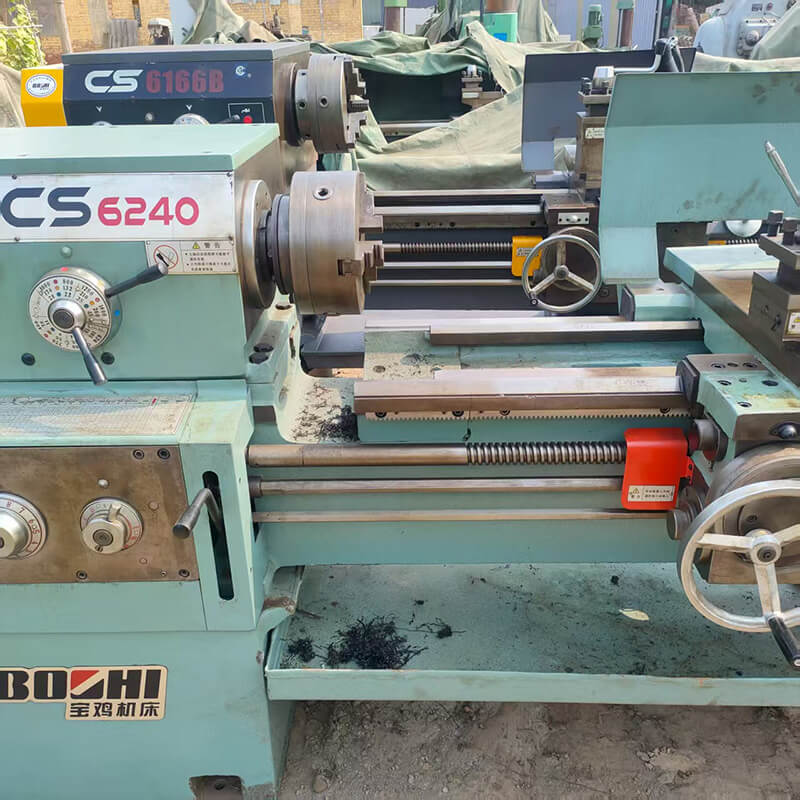

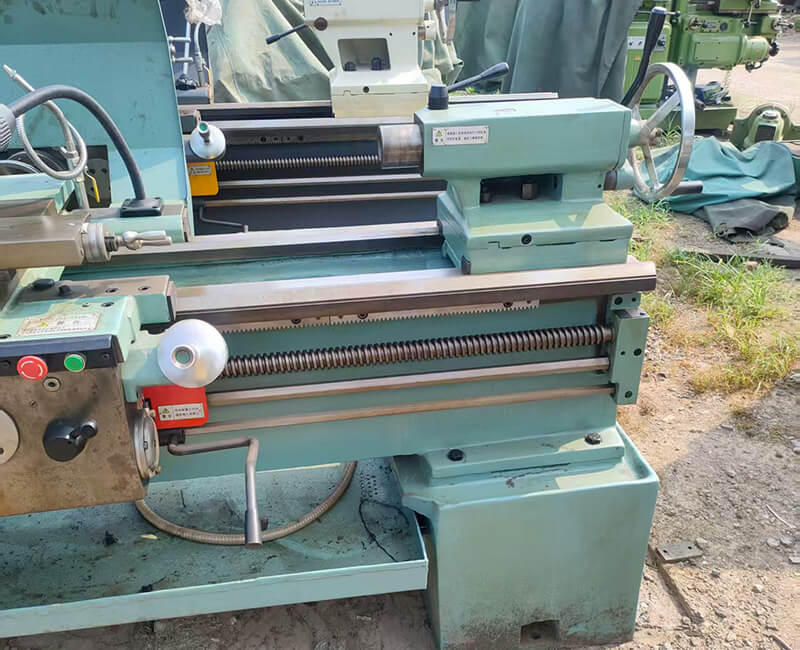

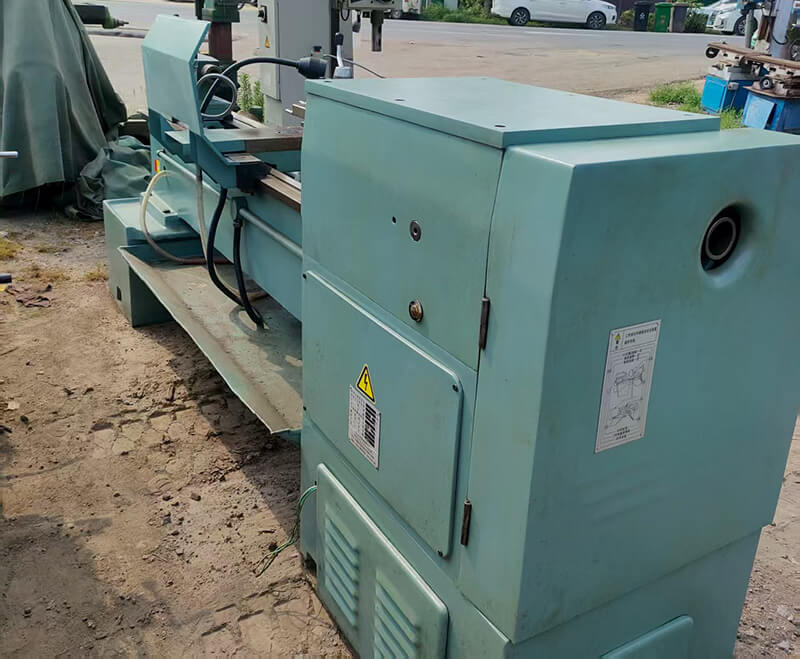

Baoji CS6240 Lathe

  1. General Machinery Manufacturing: Single-piece/small-batch processing of medium-sized rotating parts (shafts, sleeves, discs) for small-to-medium enterprises.
  2. Auto/Motorcycle Parts Production: Machining shaft-type components, threaded connectors, and bearing sleeves for vehicle transmission systems.
  3. Hardware & Light Industry: Fabricating precision hardware fittings, textile machinery parts, and daily-use mechanical components.
  4. Equipment Maintenance Workshops: Repairing worn shafts, damaged sleeves, and threaded parts of industrial equipment in factories/mines.

2,500.00$

Whatstaap
Send Email
  • Maximum Swing Over Bed: 400mm
  • Maximum Swing Over Carriage: 210mm
  • Standard Machining Length: 750mm / 1000mm / 1500mm
  • Spindle Through Hole Diameter: 52mm
  • Spindle Speed Range: 12-1600rpm (12-speed stepped adjustment)
  • Main Motor Power: 5.5kW (AC variable frequency)
  • Tailstock Sleeve Diameter/Stroke: 75mm / 150mm
  • Tailstock Taper: Morse No.5 (MT5)
  • Tool Post: 4-station turret (tool shank size 25×25mm)
  • Feed Rate Range (Longitudinal/Transverse): 0.02-5mm/r / 0.01-2.5mm/r
