CDK-6150 CNC Lathe
CDK-6150 CNC Lathe - Image 2
CDK-6150 CNC Lathe - Image 3
CDK-6150 CNC Lathe - Image 4

CDK-6150 CNC Lathe

  1. Precision Machining: Turning shafts, sleeves, flanges, and threaded parts with high accuracy for automotive, machinery, and instrument industries.
  2. Batch Production: Suitable for small-to-medium batch processing of metal components (carbon steel, alloy steel, stainless steel) requiring consistent quality.
  3. General Machinery Manufacturing: Processing hydraulic cylinders, pump bodies, and transmission parts for industrial equipment.
  4. Hardware & Auto Parts: Fabricating precision auto accessories, hardware fittings, and mechanical connectors.

9,689.00$

Whatstaap
Send Email
  • Maximum Swing Over Bed: 500mm
  • Standard Machining Length: 1000mm / 1500mm / 2000mm
  • Spindle Through Hole Diameter: 80mm
  • Spindle Speed Range: 50-2000rpm (stepless)
  • X/Z-axis Travel: 230mm / 1000mm/1500mm
  • Rapid Traverse Speed (X/Z): 8/12 m/min
  • Tool Post: 8-station hydraulic turret

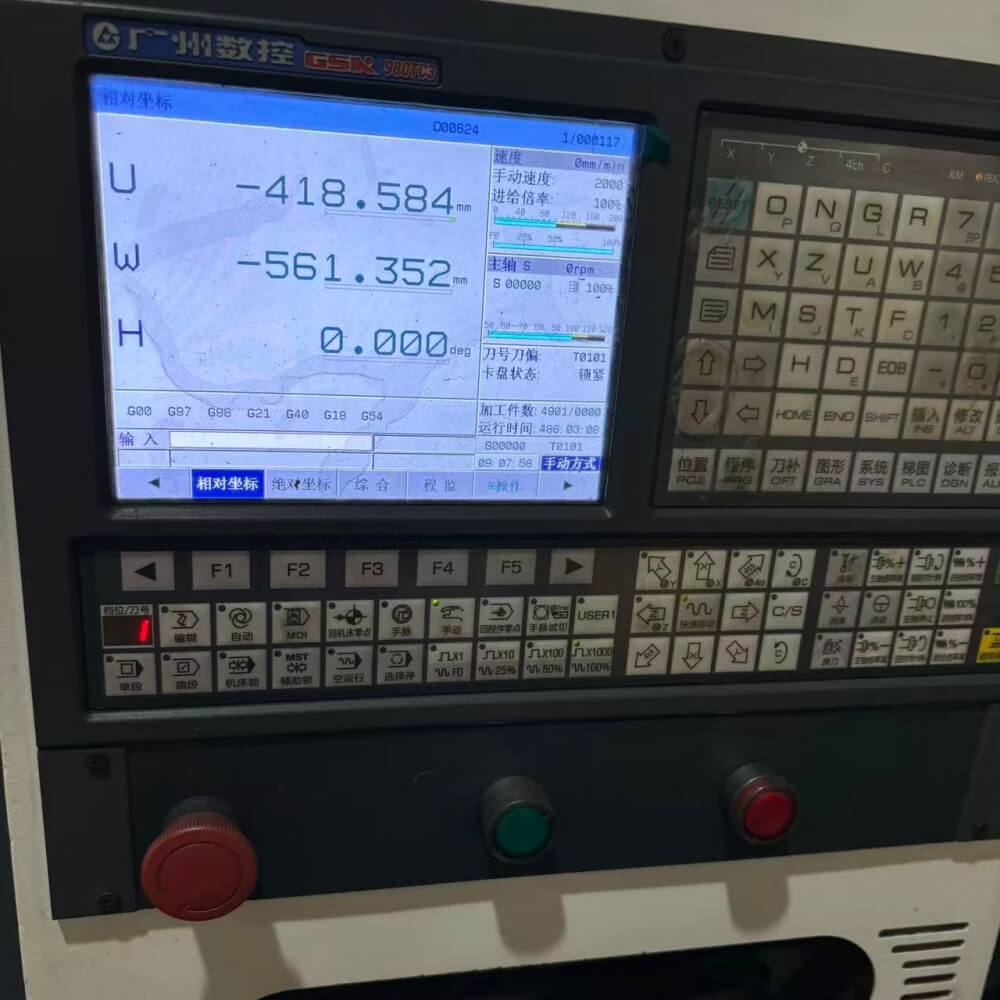

  • CNC System: FANUC/GSK/KND (optional)
  • Main Motor Power: 11kW
  • Positioning Accuracy (X/Z): ≤0.015/0.02mm
