CNC lathe CKA6163

Core Application ScenariosThe CKA6163 CNC lathe is a high-performance, heavy-duty automatic lathe designed for processing large and medium-sized cylindrical workpieces with high precision and efficiency. It integrates advanced CNC technology, making it an indispensable tool in modern manufacturing.

Large-Diameter Component Machining: With a maximum swing diameter of 630mm over the bed, this machine excels at turning large-diameter discs, flanges, sleeves, and other components commonly found in industries such as power generation, heavy machinery, and aerospace.
Shaft and Axle Production: The CKA6163 is ideal for manufacturing precision shafts and axles used in automotive transmissions, machine tool spindles, and industrial gearboxes. Its robust construction ensures stability during long-chipping operations.
Batch Production of Medium to Large Parts: Equipped with a powerful motor, a high-capacity hydraulic turret, and efficient chip removal systems, the CKA6163 is optimized for continuous, high-volume production. This reduces cycle times and labor costs compared to manual or semi-automatic machines.
Complex Contour Machining: Utilizing its precise servo control system and multi-axis interpolation capabilities, the CKA6163 can accurately machine complex contours, threads (including internal, external, metric, inch, and tapered threads), and grooves, meeting the demanding requirements of sophisticated mechanical parts.

Batch Advantages of Equipment

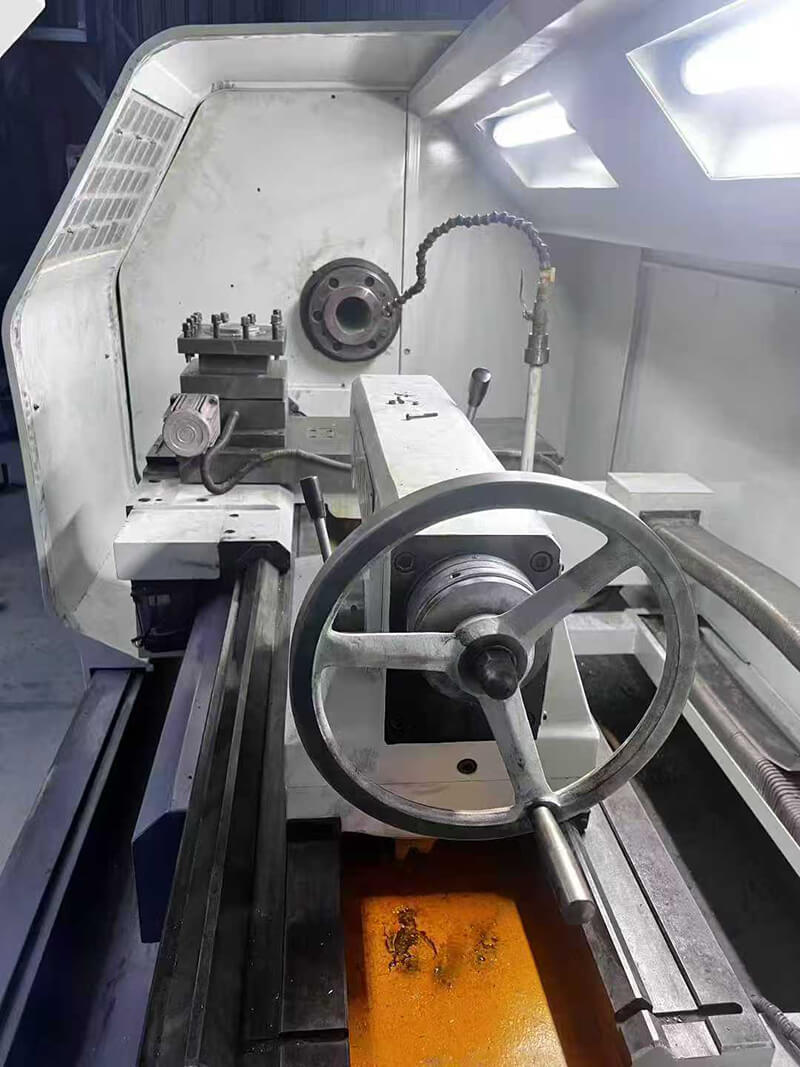

Superior Rigidity and Stability: The machine features a heavy-duty cast iron bed with an optimized box-type structure and hardened, precision-ground guideways. This ensures exceptional rigidity, minimizing vibration and deformation during heavy cutting, thus guaranteeing consistent machining accuracy.
High Productivity and Automation: The combination of a fast tool change turret, high rapid traverse rates, and the ability to run unattended (with optional bar feeders or gantry loaders) significantly boosts productivity. The user-friendly CNC system allows for easy programming and modification of complex parts.
Versatility and Flexibility: The large spindle bore allows for processing of thick-walled pipes and bars. The multiple tool stations enable a variety of operations to be performed in a single setup, reducing handling time and improving part quality.
Cost-Effective Heavy-Duty Solution: As a used CNC lathe, the CKA6163 offers an excellent balance between performance and investment cost. It provides the capabilities of a modern, heavy-duty CNC lathe at a fraction of the cost of a new unit, making it an attractive option for businesses looking to expand their heavy machining capabilities without a substantial capital outlay.

5,500.00$

Item	Specification	Item	Specification
Model Number (型号)	CKA6163	Place of Origin (产地)	China (中国)
Machine Type (机床类型)	Horizontal CNC Lathe (卧式数控车床)	Brand Name (品牌)	TBD / Various Brands (如沈阳、大连等)
Max. Swing Diameter Over Bed (最大加工直径)	Φ630mm	Max. Cutting Diameter (最大切削直径)	Φ630mm (在床身上) / Φ320mm (在刀塔上)
Max. Cutting Length (最大切削长度)	1000mm / 1500mm / 2000mm (可选)	Spindle Bore (主轴通孔直径)	Φ82mm / Φ105mm / Φ130mm (可选)
Spindle Speed Range (主轴转速范围)	10-2000 rpm (变频 / 伺服主电机)	Tool Post Type (刀架类型)	8-station Hydraulic Turret (8 工位液压刀塔)
X-axis Travel (X 轴行程)	350mm	Z-axis Travel (Z 轴行程)	1050mm / 1550mm / 2050mm (可选)
Rapid Traverse Rate (快移速度)	X: 12 m/min, Z: 15 m/min	Positioning Accuracy (定位精度)	±0.003 mm/1000mm

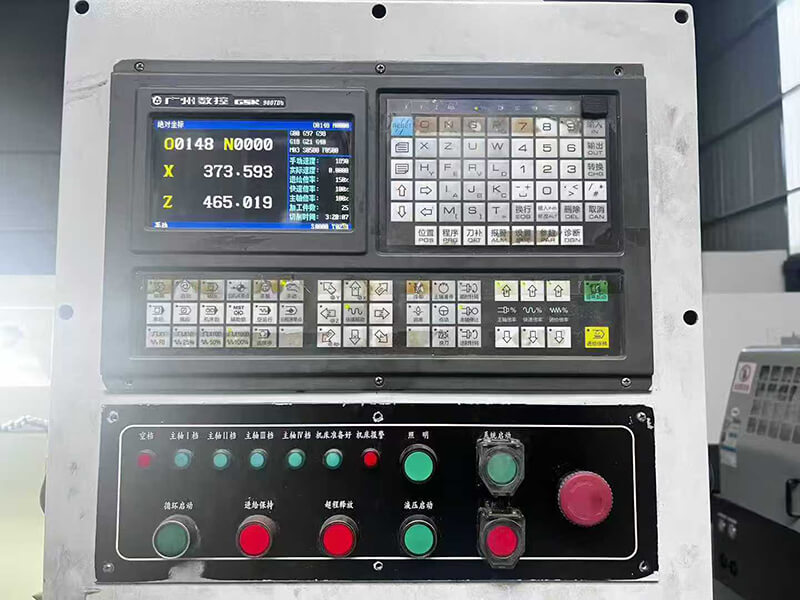

Control System (控制系统)	FANUC 0i-TF / SIEMENS 828D/820D (或其他品牌)	Motor Power (电机功率)	15 kW / 18.5 kW (主电机)
Tailstock Quill Diameter (尾座套筒直径)	Φ75mm	Weight (重量)	Approx. 5000 - 7000 kg
*Overall Dimensions (LWH) (外形尺寸)*	(示例) 3200mm x 1800mm x 1700mm	Key Selling Points (核心卖点)	High Precision, High Efficiency, Large Capacity, Reliable Performance
Warranty (质保)	3 Months (Parts Only)	Machinery Test Report (机械检测报告)	Available Upon Request
Video Outgoing-Inspection (出货视频)	Available Upon Request
