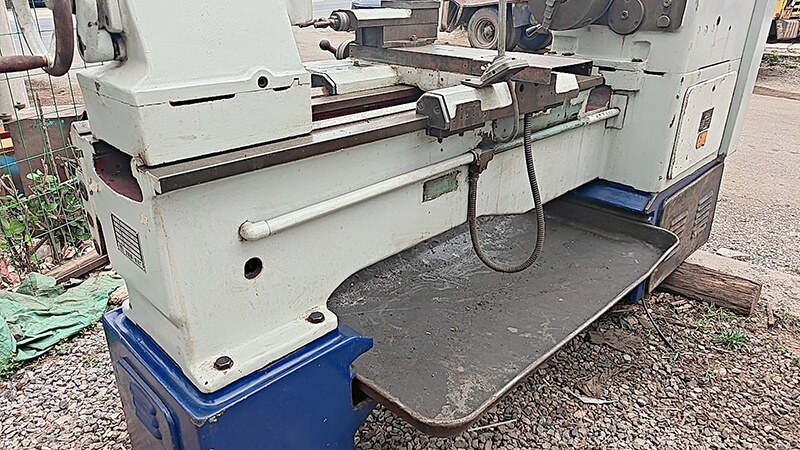

The CW6163B ordinary second – hand heavy – duty lathe is a widely used machining equipment, which is suitable for processing various metal workpieces.

• Main Technical Parameters2
  • Cutting Capacity: The maximum swing diameter on the bed is 630mm, and the maximum swing diameter over the carriage is 350mm. The maximum length of the workpiece can be 750mm, 1000mm, 1500mm, 2000mm, 3000mm, 4000mm, 5000mm, 6000mm, 8000mm or 10000mm, and the maximum cutting length is 600mm, 850mm, 1350mm, 1850mm, 2850mm, 3850mm, 4850mm, 5850mm, 7850mm or 9850mm.
  • Spindle Parameters: The spindle bore is 100mm, and the spindle speed range is usually 7.5 – 1000r/min, with multiple – speed levels, which can meet the processing requirements of different materials and processes.
  • Feed Parameters: The longitudinal feed speed has 64 levels, ranging from 0.1 to 24.32mm/r. The lead – screw pitch is 12mm, which can process 50 kinds of metric threads, with a range of 1 – 240mm, and 53 kinds of module threads, with a range of 0.5 – 120mm.
  • Motor Power: The main motor power is 11kW, which can provide sufficient power for heavy – duty cutting.
