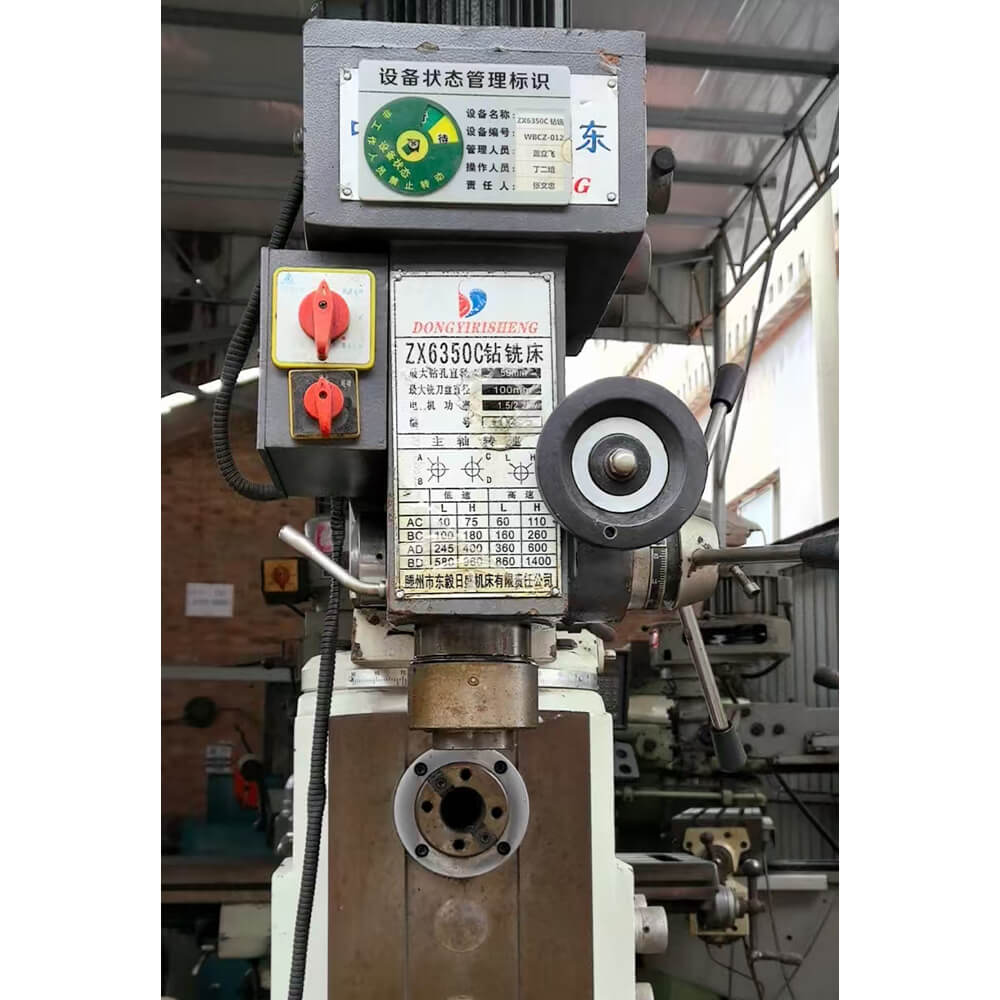

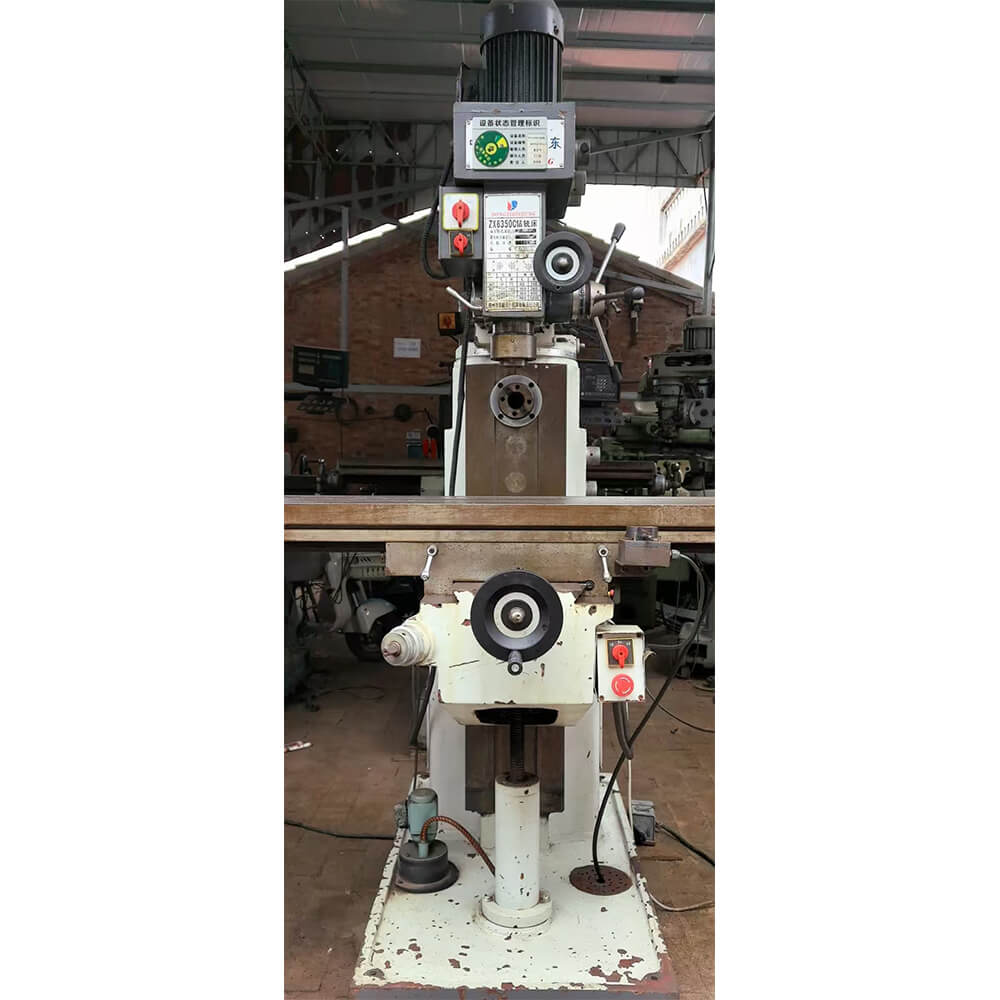

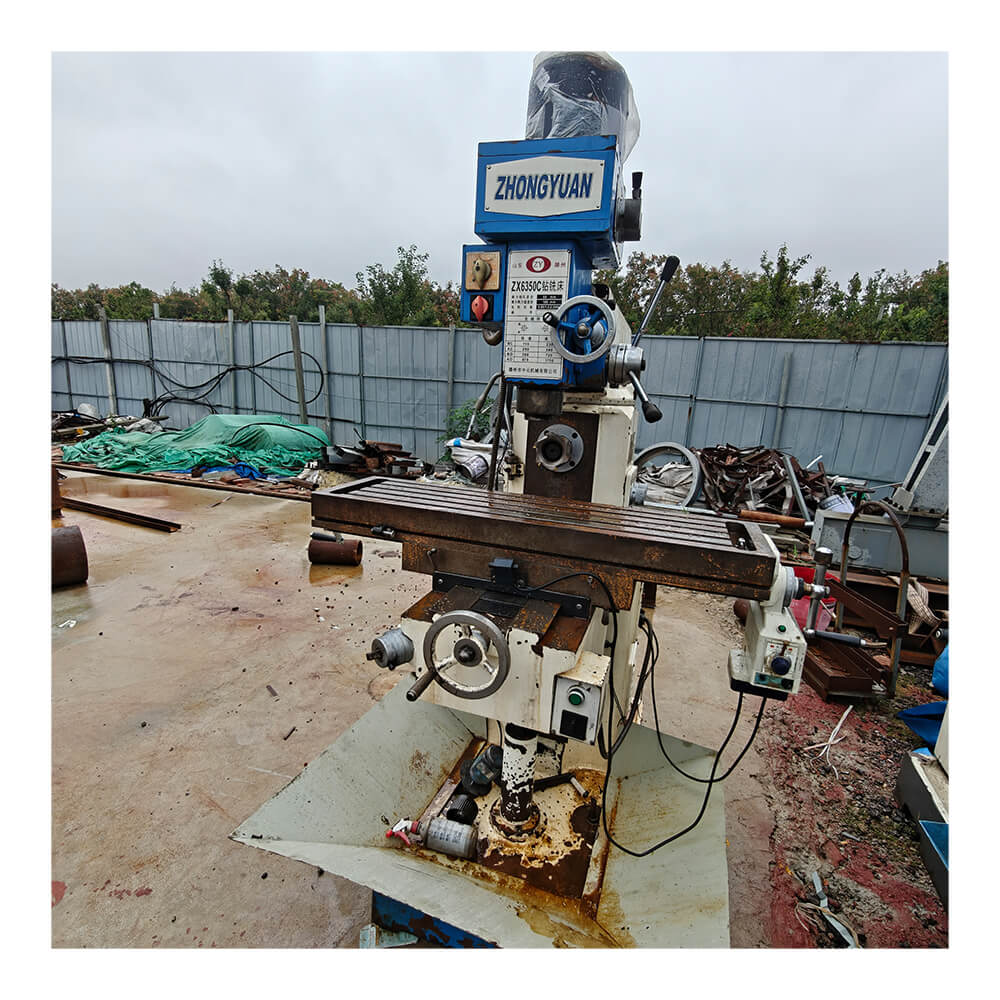

Drilling And Milling machine ZX6350C
Versatile Processing Capabilities: This machine integrates multiple cutting functions such as drilling, milling, boring, grinding and tapping, which can meet the processing needs of small and medium – sized parts in various scenarios. It supports both vertical and horizontal milling operations, and is particularly suitable for cutting non – ferrous metals, plastics, nylon and other materials, widely applicable to single – piece or batch production in machinery manufacturing, instrument industry, architectural decoration and repair sectors.
1,400.00$
| Attribute | Specifications |
|---|---|
| Maximum Drilling Diameter | 50 mm |
| Maximum End Milling Width | 100 mm |
| Maximum Vertical Milling Diameter | 25 mm |
| Maximum Tapping Diameter | M16 |
| Spindle Taper | R8 |
| Spindle Speed Range | Vertical: 115 - 1750 r.p.m (8 steps); Horizontal: 40 - 1300 r.p.m (16 steps) |
| Spindle Travel | 120 mm |
| Distance from Spindle Nose to Worktable | 80 - 460 mm |
| Worktable Size | 1200 mm × 280 mm |
| Worktable Travel | 700 mm × 260 mm |
| Main Motor Power | Vertical: 0.85 / 1.5 kw; Horizontal: 2.2 kw |
| Feed Motor Power | 0.37 kw |
| Coolant Motor Power | 0.4 kw |
| Overall Dimensions | 1352 mm × 1600 mm × 2130 mm |
| Net Weight/Gross Weight | 1200 kg / 1350 kg |
