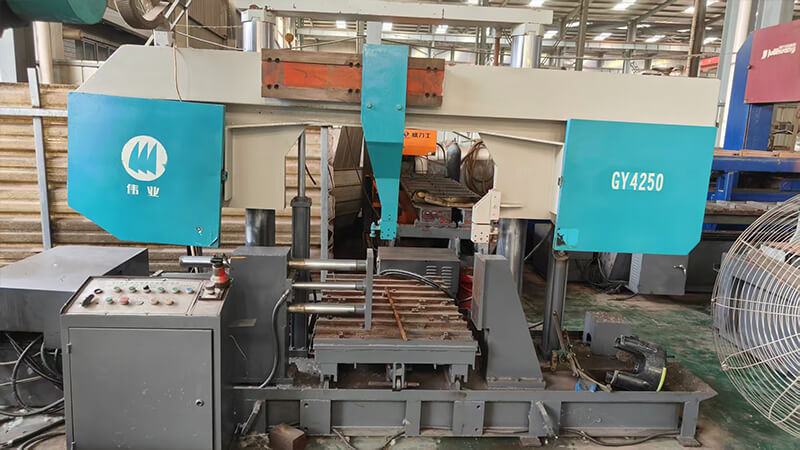

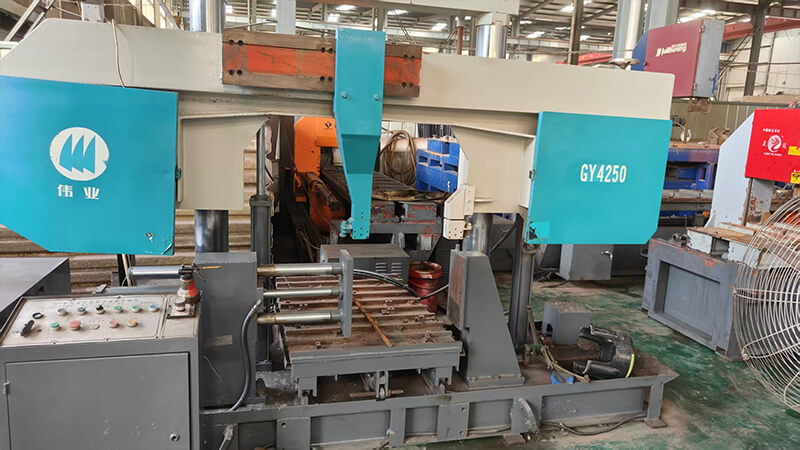

GY4250 Band Saw Machine
The GY4250 is a double-column horizontal band saw machine designed for precision cutting of ferrous and non-ferrous metals. With a solid structure and hydraulic feeding system, this model is ideal for cutting bars, tubes, and profiles in steel and other materials. It provides high cutting efficiency, excellent stability, and smooth surface finishes, making it well-suited for metal fabrication, mechanical engineering, and production lines requiring large-volume sawing.
|
Specification |
Value |
|
Max. Cutting Capacity (Round) |
Ø500 mm |
|
Max. Cutting Capacity (Square) |
500 × 500 mm |
|
Blade Dimensions |
5800 × 41 × 1.3 mm |
|
Blade Speed |
27 / 45 / 69 m/min (three-speed selection) |
|
Main Motor Power |
4.0 kW |
|
Hydraulic Motor Power |
0.75 kW |
|
Coolant Pump Power |
0.125 kW |
|
Clamping Method |
Hydraulic clamping |
|
Feeding Method |
Manual (Optional: automatic roller feeder) |
|
Overall Dimensions |
2600 × 1300 × 1600 mm (approx.) |
|
Net Weight |
About 2200 kg (varies by manufacturer) |
1,600.00$
Key Features:
Double-Column Design: Provides high rigidity and vibration resistance for precise and stable cutting.
Hydraulic Feed System: Ensures smooth cutting and adjustable feed rates.
Multi-Speed Blade Drive: Suitable for various materials and improves blade life.
Hydraulic Vise Clamping: Secures the workpiece tightly for batch processing.
Blade Tensioning and Break Detection: Enhances safety and prolongs blade life.
Application Fields:
Metal Fabrication Workshops
Steel Service Centers
Mold and Tooling Factories
Heavy Machinery Manufacturing
Shipbuilding and Bridge Construction
