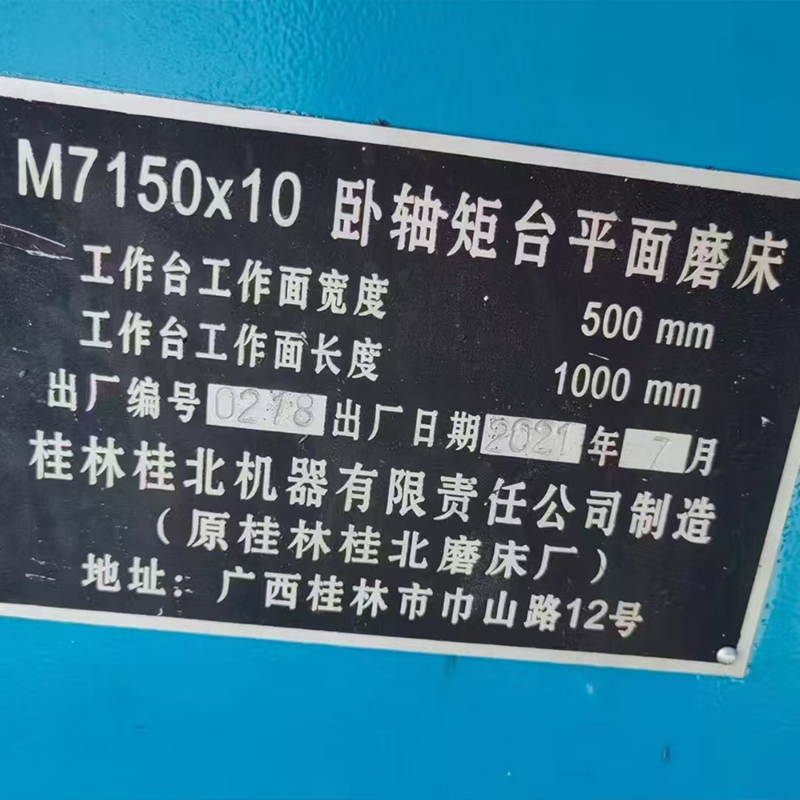

M7150×10 Horizontal Spindle Rectangular Table Surface Grinder
M7150×10 Horizontal Spindle Rectangular Table Surface Grinder - Image 2
M7150×10 Horizontal Spindle Rectangular Table Surface Grinder - Image 3
M7150×10 Horizontal Spindle Rectangular Table Surface Grinder - Image 4
M7150×10 Horizontal Spindle Rectangular Table Surface Grinder - Image 5

M7150×10 Horizontal Spindle Rectangular Table Surface Grinder

Application Scenarios

  1. Precision Machining: Grinding flat surfaces, grooves, and complex profiles of metal workpieces in machinery manufacturing, ensuring high accuracy and surface finish.
  2. Mold & Die Industry: Processing molds for casting, forging, and stamping with precise contour grinding.
  3. Tool Manufacturing: Fabricating high-precision cutting tools, jigs, and fixtures.
  4. Equipment Maintenance: Repairing and re-grinding worn parts such as machine bases, guide rails, and precision components in repair workshops.
  5. Aerospace & Automotive: Machining critical parts like engine components, brake discs, and transmission parts that require strict flatness and parallelism.

4,500.00$

Whatstaap
Send Email

Core Parameters

  • Table Size (Width × Length): 500mm × 1000mm
  • Maximum Grinding Workpiece Size (Width × Length × Height): 500mm × 1000mm × 600mm
  • Longitudinal Table Travel: 200-1700mm (hydraulic)
  • T-slots on Table: 3 (22mm width)
  • Maximum Workpiece Weight: 1235.5kg
  • Magnetic Chuck Size: 500mm × 1000mm
  • Distance from Spindle Center to Table Surface: 150-700mm
  • Grinding Head Movement: Transverse 600mm, Vertical 500mm
  • Minimum Graduation of Vertical Feed Handwheel: 0.01mm
  • Grinding Wheel Size (Outer Diameter × Width × Inner Diameter): Φ400×50×Φ203mm
  • Rapid Lifting Speed of Grinding Head: 310mm/min
  • Total Electrical Capacity: 14kVA
  • Grinding Head Motor Power: 7.5kW (1440r/min)
  • Hydraulic Pump Motor Power: 3kW (960r/min)
  • Machined Surface Parallelism: 0.02mm/300mm
  • Workpiece Surface Roughness: Ra0.63μm
