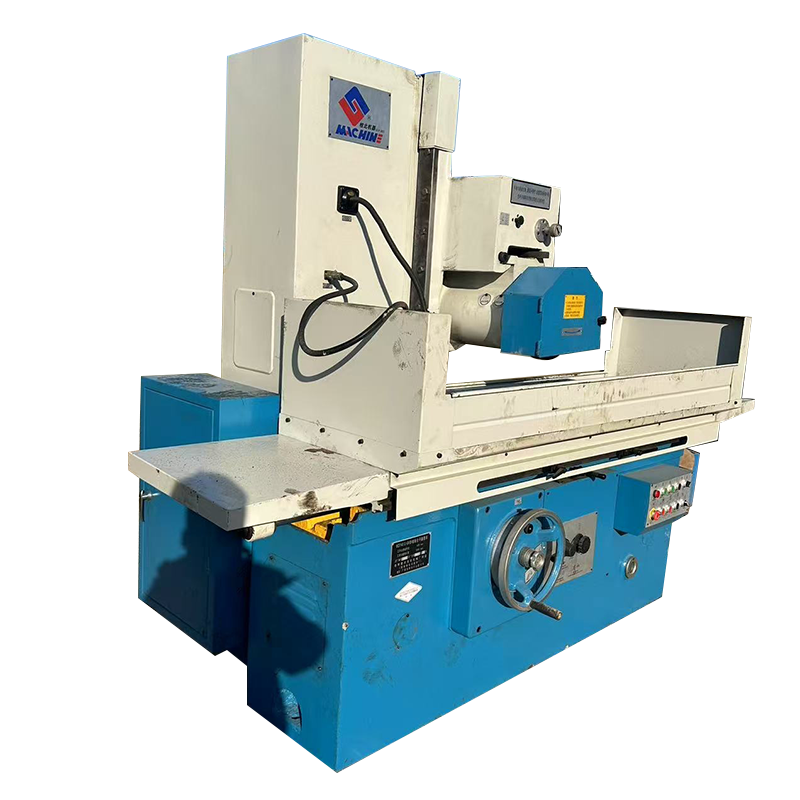

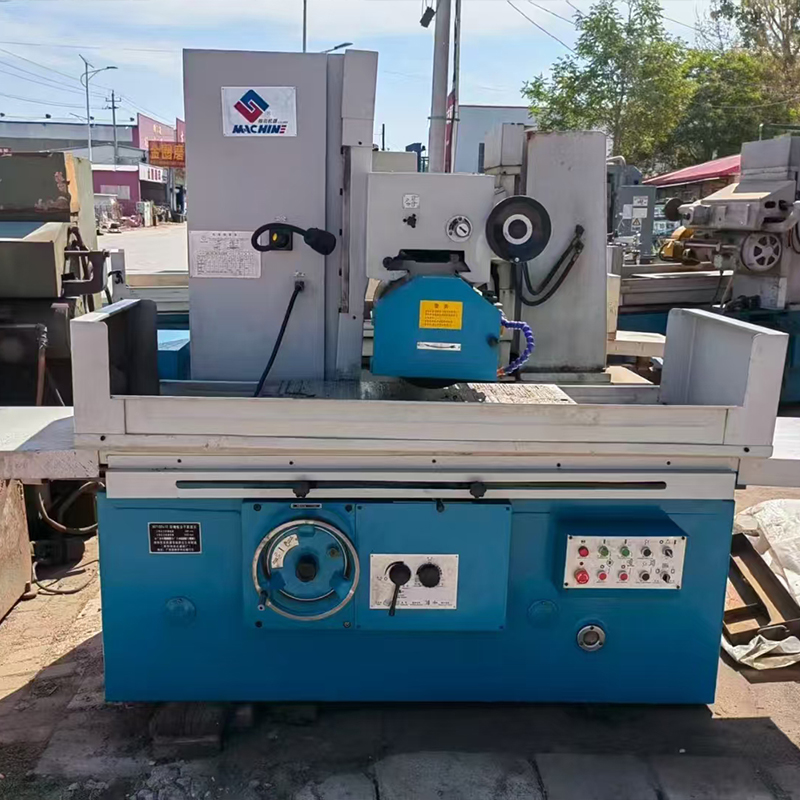

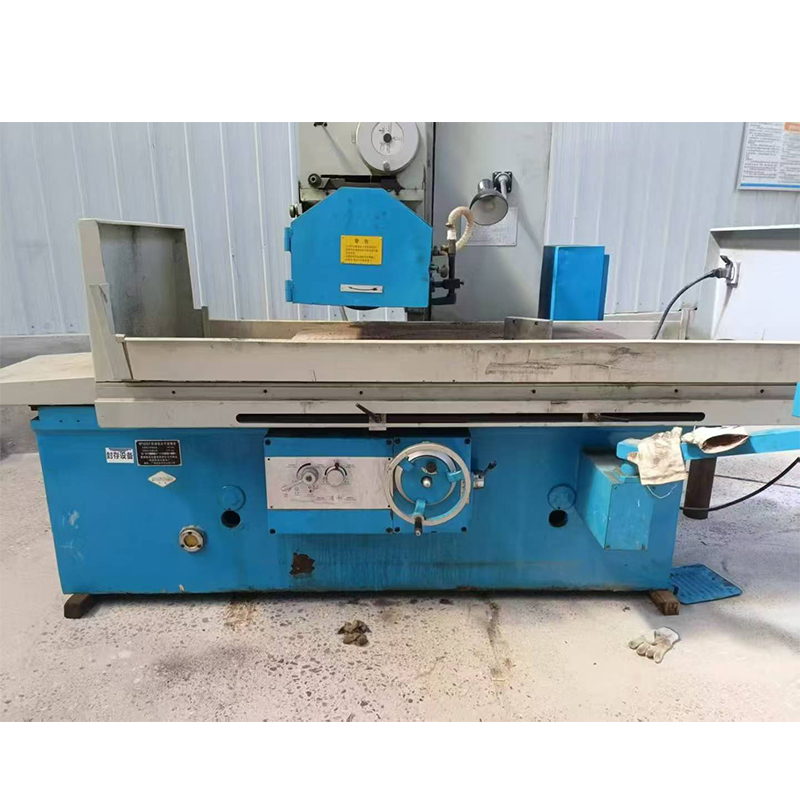

M7150×10 Horizontal Spindle Rectangular Table Surface Grinder
Application Scenarios
Precision Machining: Grinding flat surfaces, grooves, and complex profiles of metal workpieces in machinery manufacturing, ensuring high accuracy and surface finish.
Mold & Die Industry: Processing molds for casting, forging, and stamping with precise contour grinding.
Tool Manufacturing: Fabricating high-precision cutting tools, jigs, and fixtures.
Equipment Maintenance: Repairing and re-grinding worn parts such as machine bases, guide rails, and precision components in repair workshops.
Aerospace & Automotive: Machining critical parts like engine components, brake discs, and transmission parts that require strict flatness and parallelism.
3,400.00$
Core Parameters
- Table Size (Width × Length): 500mm × 1000mm
- Maximum Grinding Workpiece Size (Width × Length × Height): 500mm × 1000mm × 600mm
- Longitudinal Table Travel: 200-1700mm (hydraulic)
- T-slots on Table: 3 (22mm width)
- Maximum Workpiece Weight: 1235.5kg
- Magnetic Chuck Size: 500mm × 1000mm
- Distance from Spindle Center to Table Surface: 150-700mm
- Grinding Head Movement: Transverse 600mm, Vertical 500mm
- Minimum Graduation of Vertical Feed Handwheel: 0.01mm
- Grinding Wheel Size (Outer Diameter × Width × Inner Diameter): Φ400×50×Φ203mm
- Rapid Lifting Speed of Grinding Head: 310mm/min
- Total Electrical Capacity: 14kVA
- Grinding Head Motor Power: 7.5kW (1440r/min)
- Hydraulic Pump Motor Power: 3kW (960r/min)
- Machined Surface Parallelism: 0.02mm/300mm
- Workpiece Surface Roughness: Ra0.63μm
- Machine Dimensions (Length × Width × Height): 4500×2135×2410mm
- Machine Weight (Net/Gross): 7500kg/8000kg
