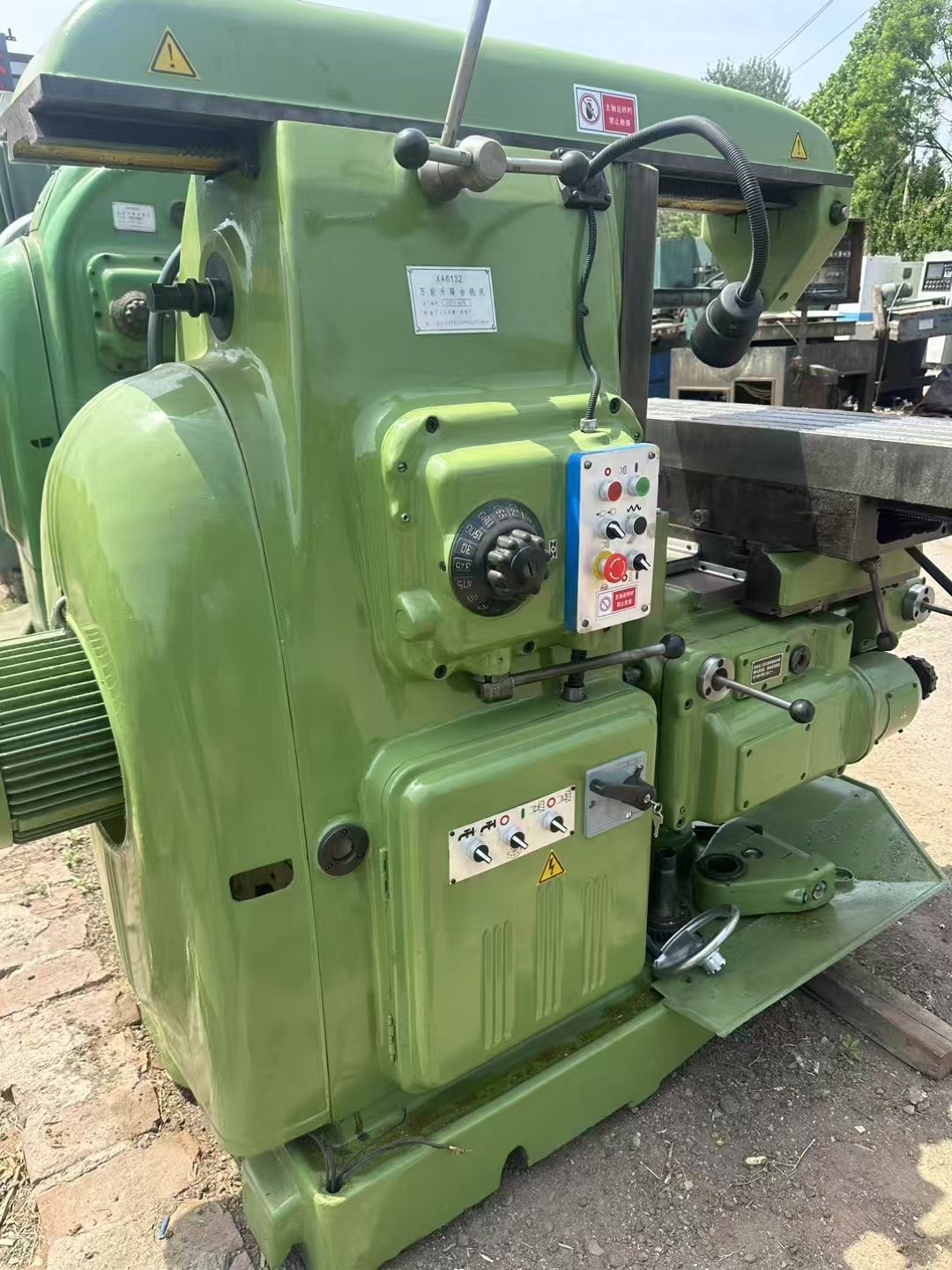

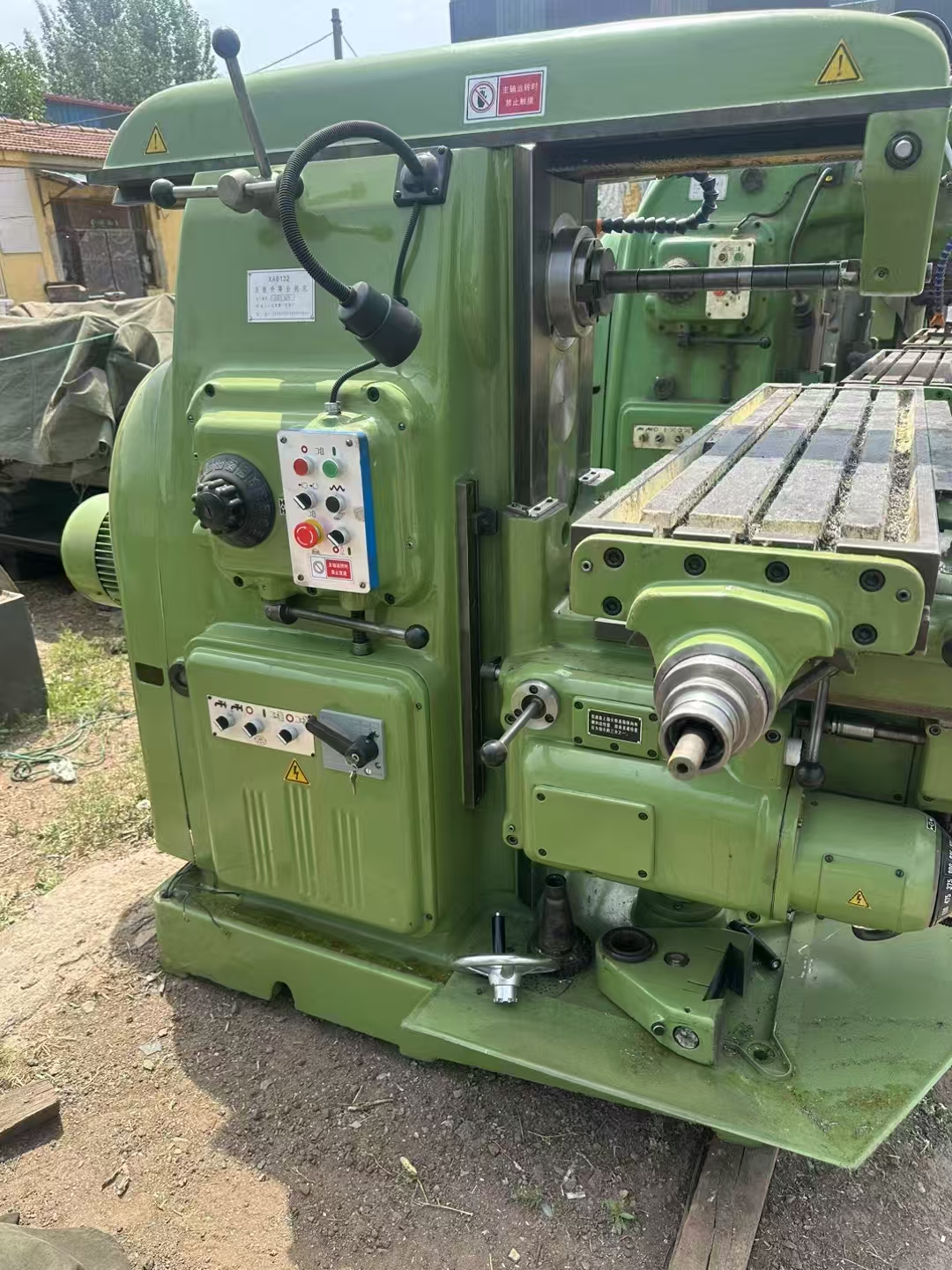

Milling Machine – XA6132 – Universal Lifting Table Milling Machine

1. Product Introduction
XA6132 is a universal lifting table milling machine with reliable structure, stable performance and easy operation. Equipped with a 7.5kW spindle motor and a complete lubrication system, it has a wide speed range and strong cutting capacity, suitable for high-speed cutting and heavy-load cutting. With accessories like rotary table and index head, its application scope can be further expanded.
2. Applications

– Process various workpieces: Planes, bevels, grooves, gears and other parts.

– Adapt to multiple industries: General machinery manufacturing, auto parts, mold processing, hardware and other fields.

– Suitable for processing scenarios: Batch production and single-piece customization with medium processing precision requirements.

3. Summary

XA6132 is a cost-effective universal milling machine with strong cutting performance and wide application. Its flexible travel and multi-level speed meet diverse processing needs. With stable quality and easy maintenance, it is an ideal equipment for medium and small manufacturing enterprises and processing workshops.

4,500.00$

CategoryParameterValue
WorktableWorking area (W×L)320×1325mm
Max load500kg
Max travel (X/Y/Z, manual/motorized)700/680, 245/230, 320/300 mm
Max rotation angle±45°
SpindleSpeed range30~1500r/min (18 levels)
Distance from spindle center to table30~350mm
Taper hole7:24 NO.50
Motor & SizeMotor power (spindle/feed)7.5kW/2.2kW
Overall dimension (L×W×H)/Net weight2294×1770×1665mm / 2850kg
