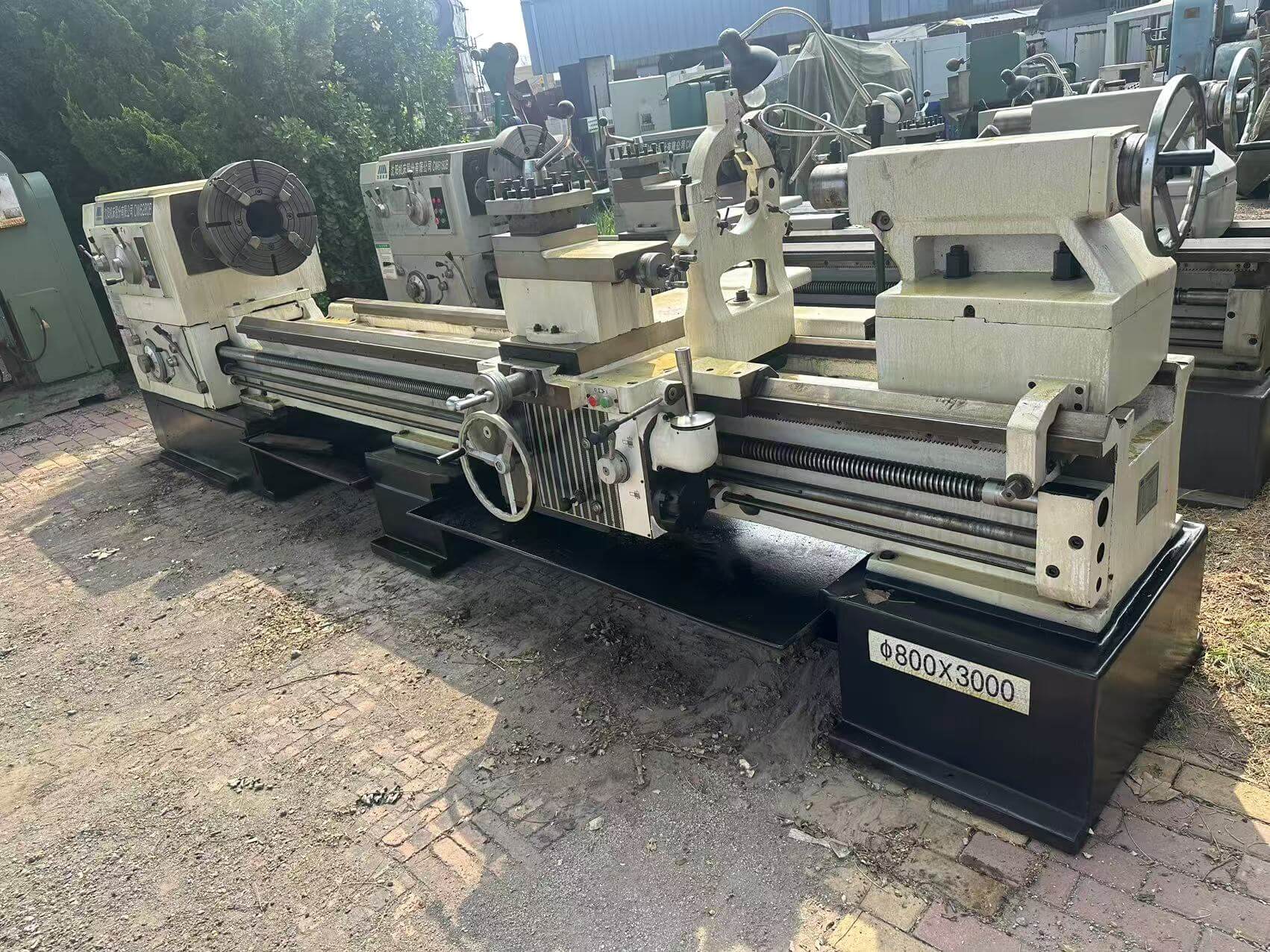

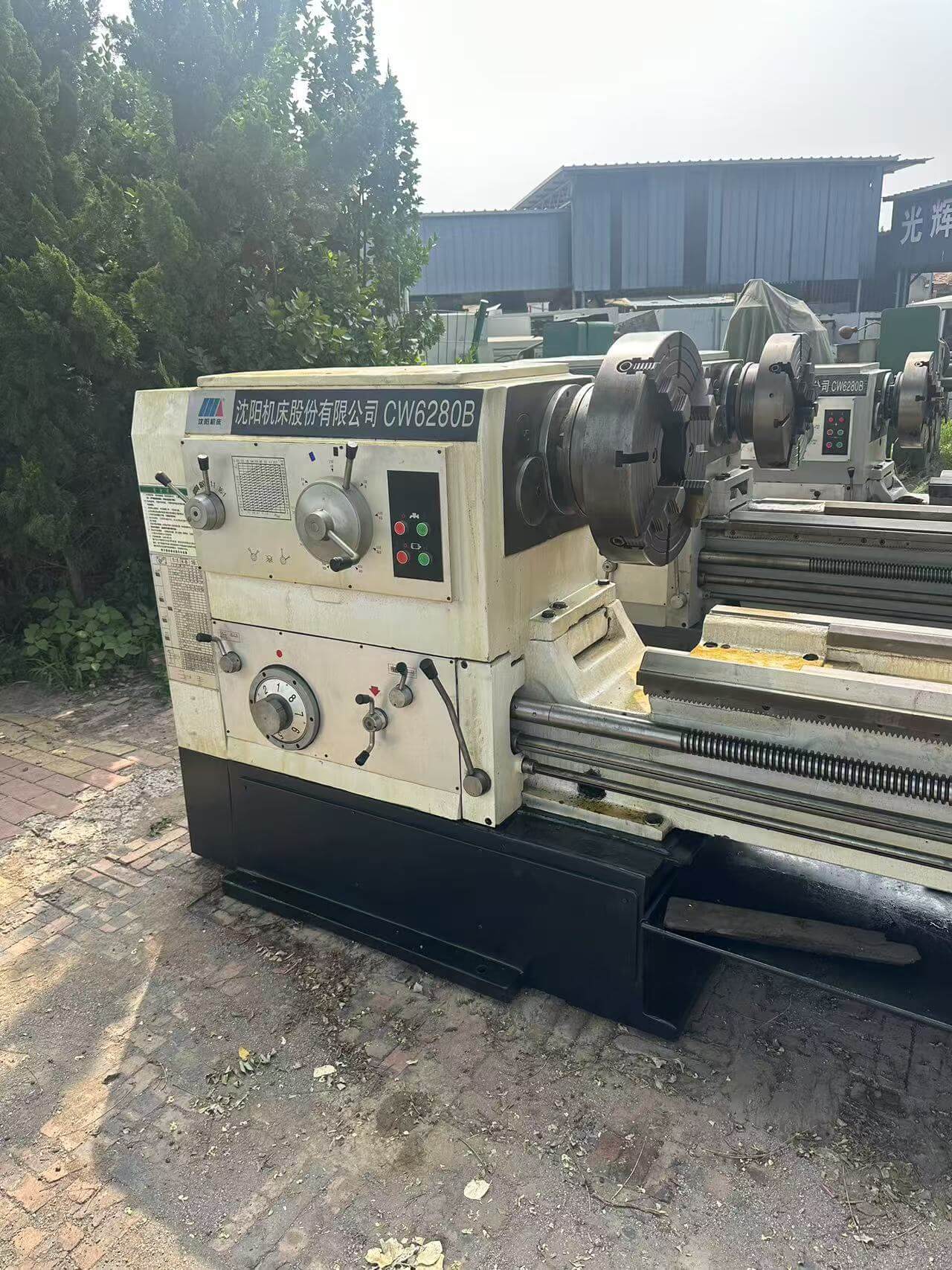

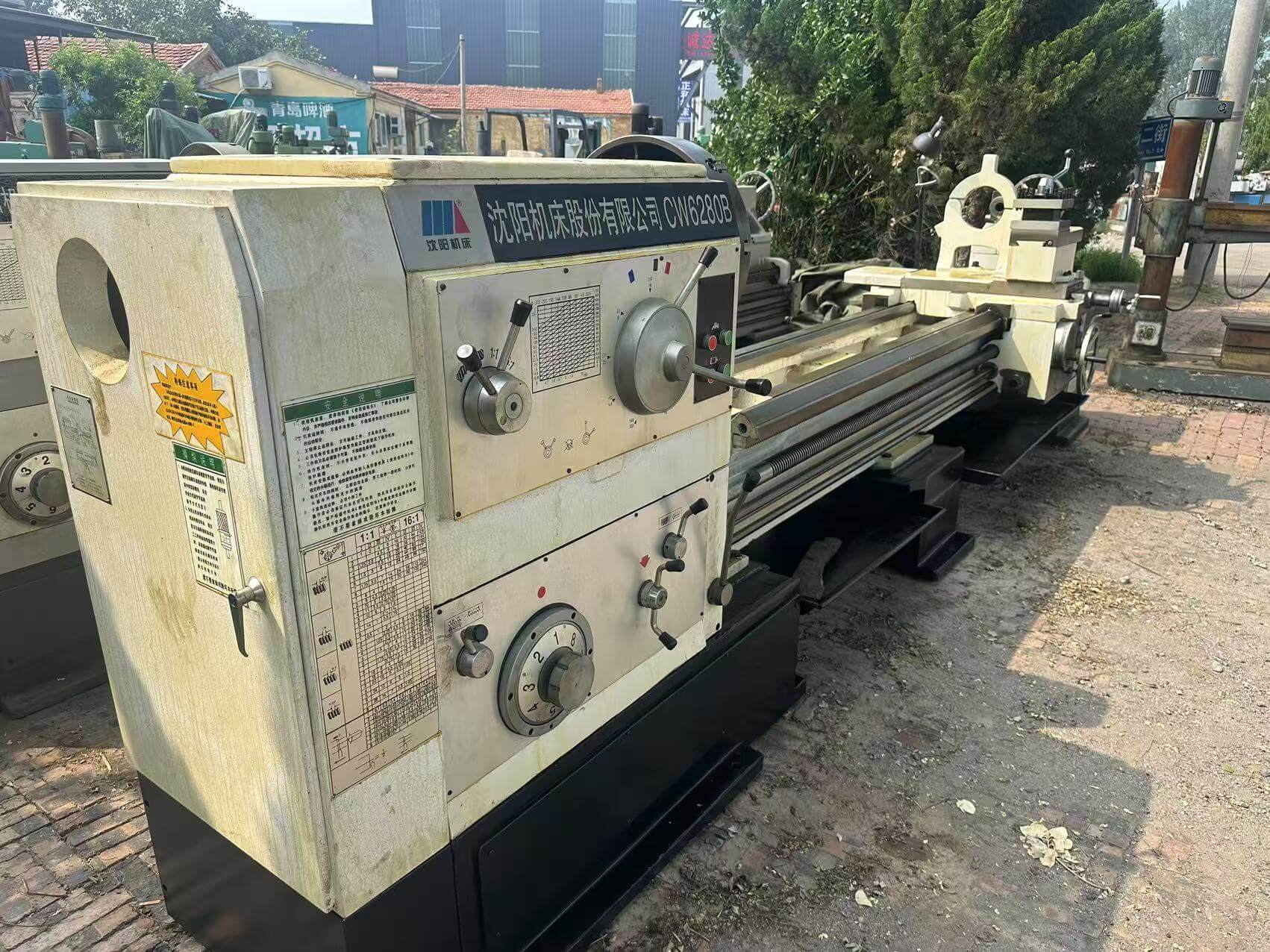

Shenyang 6180B Lathe (3m)

Application Scenarios
Heavy Machinery Manufacturing: Processing large transmission shafts, spindles and other parts, such as hydraulic pump shafts in construction machinery.
Wind Power/Energy Equipment: Handling long shaft components such as wind power spindles and generator rotors.
Mining/Metallurgical Equipment: Processing wear-resistant parts such as crusher spindles and rollers.
General Machining: Batch or single-piece processing of large-diameter flanges, sleeves and stepped shafts.

6,100.00$

Core Parameters

  • Bed Length: 3000mm (3m)
  • Maximum Workpiece Diameter: 800mm
  • Maximum Workpiece Length: 2800mm (effective machining length)
  • Spindle Speed Range: 10-1250rpm
  • Spindle Through Hole Diameter: 105mm
  • Motor Power: 11kW
  • Carriage Feed Rate: 0.025-6.3mm/r
  • Tool Post Quantity: 4-station
  • Machine Weight: Approx. 8500kg
