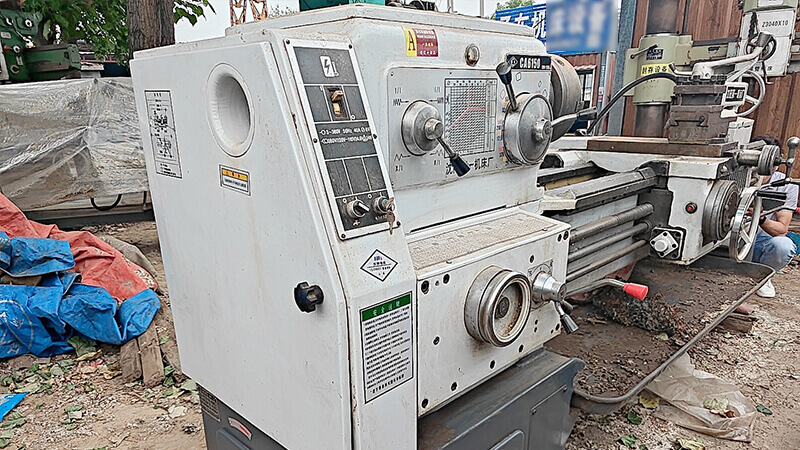

Shenyang CA6150
Heavy-Duty & Durable Structural Design
The lathe bed, headstock, and saddle are made of high-strength HT300 cast iron, which undergoes normalized heat treatment to eliminate internal stress. This ensures exceptional structural rigidity, minimal deformation under long-term heavy-load operations, and a service life of over 15 years for core components.
The spindle adopts a multi-support structure with precision class P4 tapered roller bearings, reducing radial and axial runout to ≤0.005 mm, ensuring stable rotation even at high speeds (1600 r.p.m) and improving cutting stability.
2,600.00$
| Attribute Category | Specification Details |
|---|---|
| Model Name | Shenyang CA6150 |
| Machine Type | Horizontal Ordinary Manual Lathe (Universal Gap-Bed Design) |
| Maximum Swing Diameter | φ500 mm (over the bed); φ800 mm (in the gap, for large-diameter workpieces) |
| Maximum Processing Length | 1000 mm / 1500 mm / 2000 mm / 3000 mm (four optional configurations based on user needs) |
| Spindle Bore Diameter | φ80 mm (through-spindle bore, suitable for large-diameter bar stock processing) |
| Spindle Speed Range | 11 - 1600 r.p.m (24 levels of stepless adjustable speeds via gearbox) |
| Spindle Motor Power | 7.5 kW (high-torque motor, supporting heavy-load cutting of tough metals) |
| Feed Range (Longitudinal/Z-axis) | 0.028 - 6.43 mm/r (64 types of precise feeds, adapting to different material cutting needs) |
| Feed Range (Transverse/X-axis) | 0.014 - 3.215 mm/r (64 types of feeds, ensuring fine turning accuracy) |
| Thread Machining Capacity | Metric threads: 0.5 - 24 mm (52 types); Inch threads: 1/2 - 72 t.p.i (44 types); Module threads: 0.25 - 12 mm (28 types); Diametral pitch threads: 1 - 48 DP (30 types) |
| Tool Post Type | Four-station Turret Tool Post (manual indexing, with 0.01 mm positioning accuracy) |
| Power Supply | 380 V / 50 Hz (three-phase AC; 415 V / 60 Hz optional for overseas markets) |
| Net Weight | 2800 kg (1000 mm processing length) - 4500 kg (3000 mm processing length) |
| Overall Dimensions (L×W×H) | 2500×1200×1450 mm (1000 mm processing length) - 4500×1200×1450 mm (3000 mm processing length) |
| Certifications | ISO 9001 Quality Management System Certification, CE Safety Certification |
