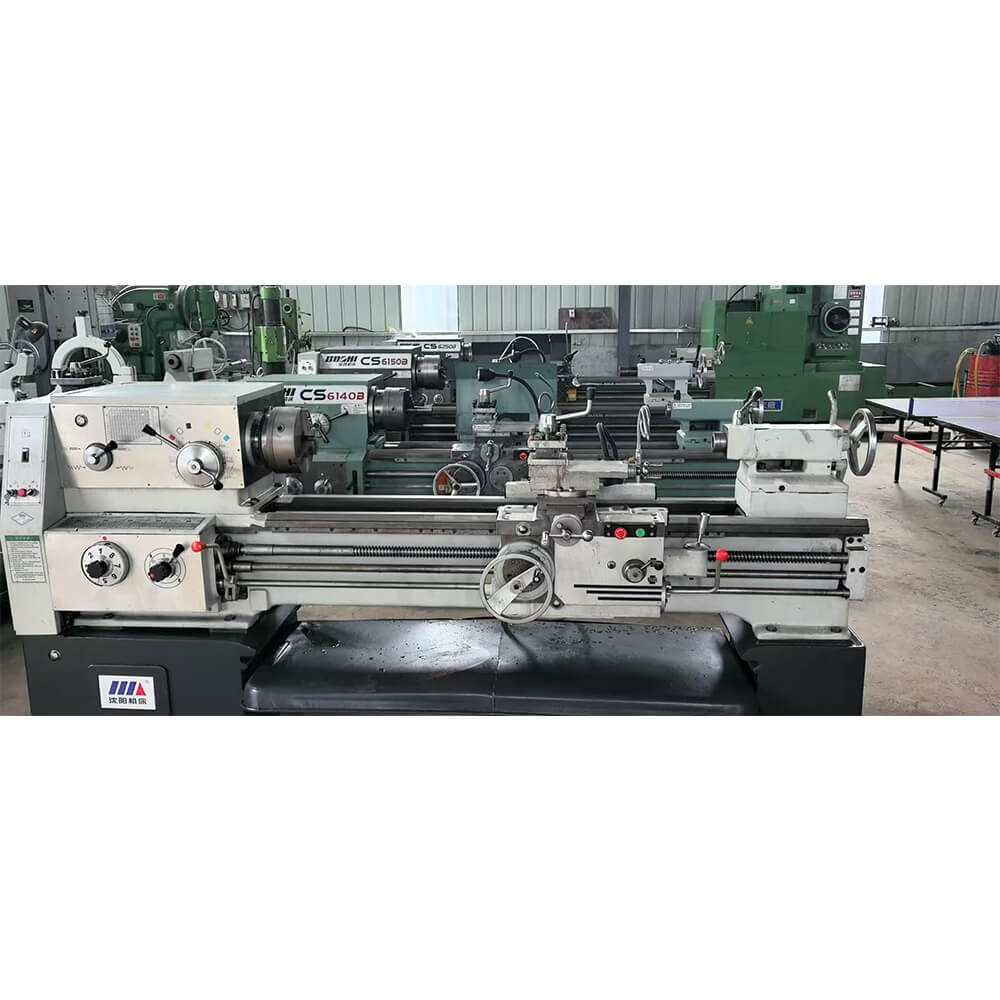

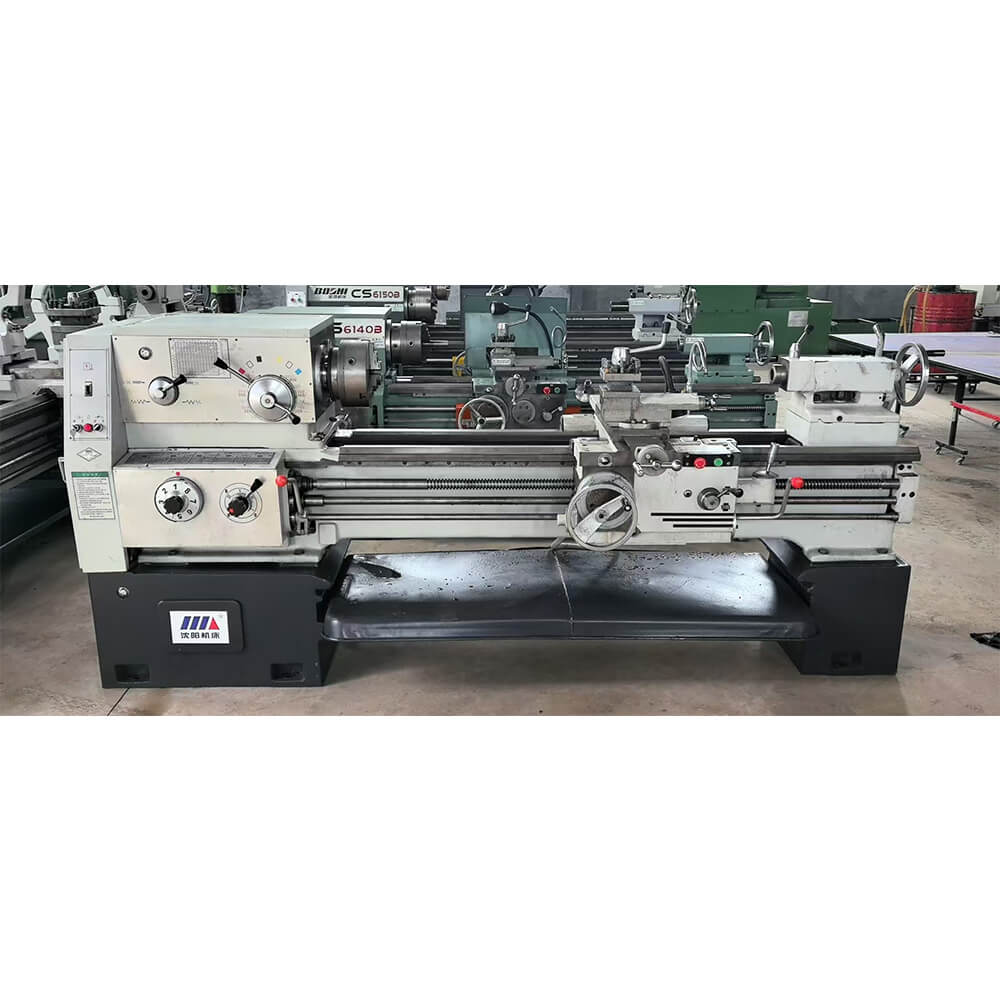

Shenyang CA6150B is a common lathe, with a wide range of applications, mainly including the following aspects:
Turning of rotating body parts: It can be used for the external circle, internal hole, end face, taper, and slot processing of various rotating body parts. For example, it can be used to process the outer circle surface of shaft parts to achieve the required diameter and surface roughness; it can also be used to process the inner hole of sleeve parts to ensure the dimensional accuracy and shape accuracy of the inner hole; it can also be used to process the end face of the parts to make it perpendicular to the axis.
Thread processing: It can turn metric threads, imperial threads, modular threads and pitch thread. The range of metric threads is 1-192mm, with a total of 44 types; the range of imperial threads is 1/2-24t.p.i, with a total of 28 types; the range of modular threads is 0.25-48module, with a total of 39 types; the range of pitch thread is 1/2-96D.P, with a total of 38 types. It can meet the processing requirements of various threads for different industries, such as the processing of threaded connection components like bolts and nuts in mechanical manufacturing.
Special processing: In addition to the conventional turning processing, it can also perform drilling, reaming, boring, reaming, embossing, and oil groove processing operations. For example, through drilling and reaming, high-precision holes can be processed on the parts, which can be used for the installation of shafts, pins, etc.; embossing processing can form patterns on the surface of the parts, increasing the surface friction and aesthetics.
Applicable production types: It is suitable for single-piece and medium-to-small batch production. Due to its flexible and concentrated operation, using a single handle for intuitive operation, it has good usability and high flexibility and economy for the processing of some small-batch and multi-variety parts.
