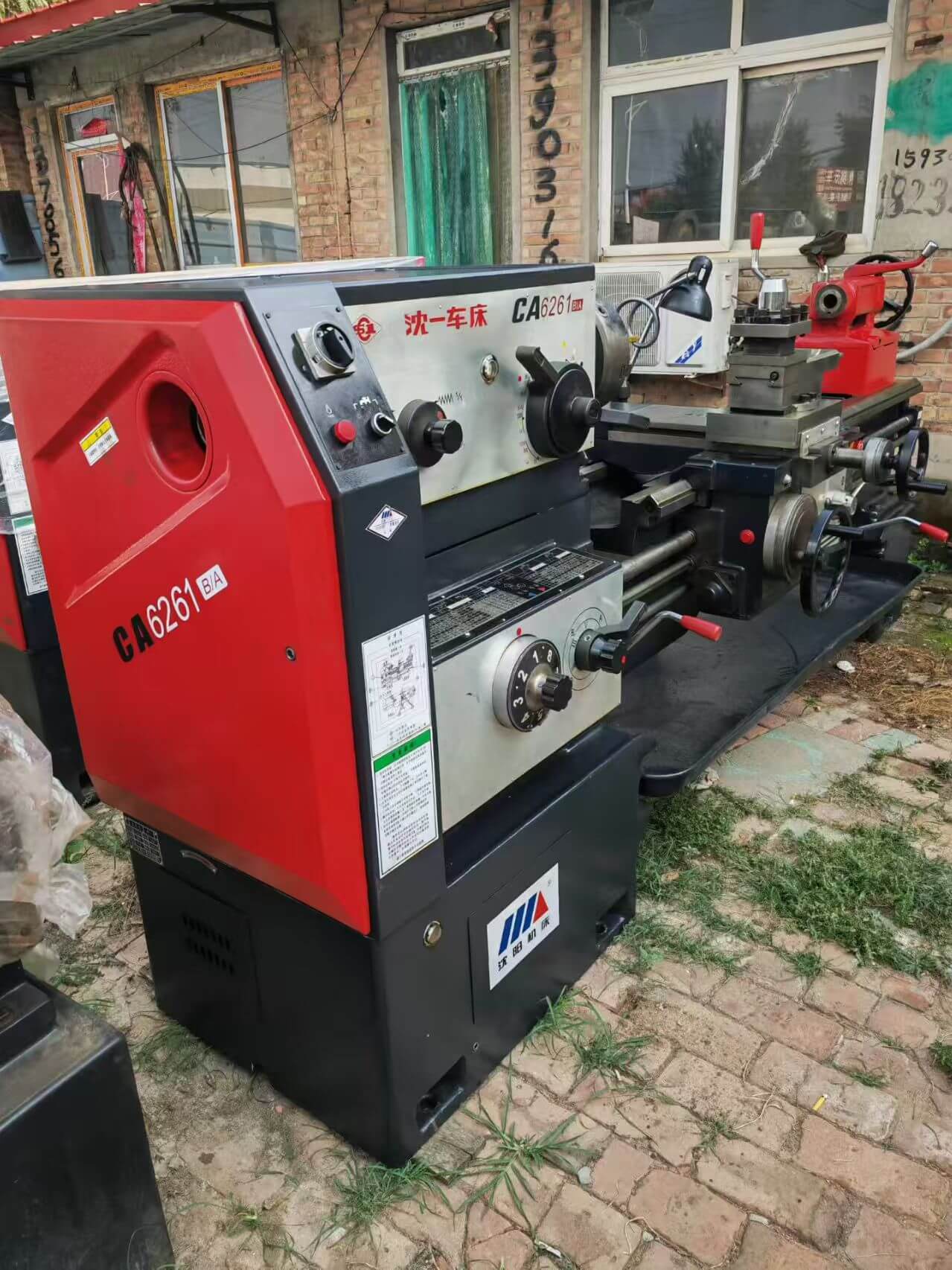

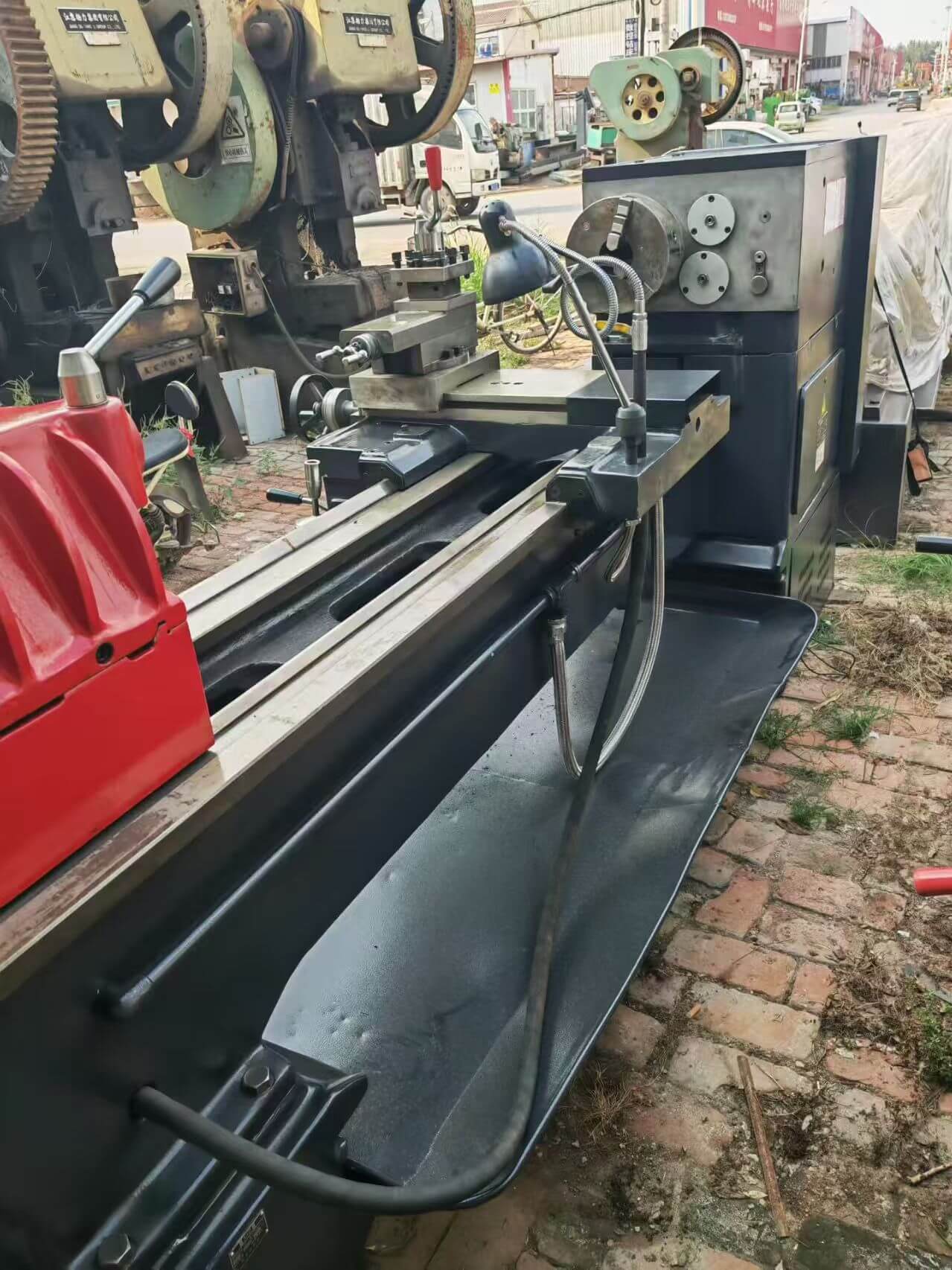

Shenyang CA6261
- Exceptional Structural RigidityThe bed, headstock, and saddle are crafted from high-strength gray cast iron (HT300) and undergo double aging treatment (natural + artificial) to eliminate internal stress. This minimizes deformation during heavy-duty cutting, ensuring stable machining of large workpieces (e.g., shafts, discs with diameter up to 610mm).
- High Machining Precision & Durability
- The spindle is supported by precision class P4 rolling bearings, reducing radial runout to ≤0.008mm and axial runout to ≤0.005mm.
- Guide rails feature quenching (surface hardness HRC52-58) and precision grinding, with low friction coefficient and wear resistance—maintaining positioning accuracy for long-term use.
- Versatile Machining CapabilitiesWith a wide range of spindle speeds (8-1250r/min) and feed rates, it accommodates diverse processes: turning, boring, facing, threading (metric/inch), and grooving. It works seamlessly with materials like carbon steel, alloy steel, cast iron, and non-ferrous metals, fitting general machinery, automotive, and heavy equipment industries.
- Stable & Low-Maintenance Operation
- The transmission system uses high-precision gears (modulus ≥3) with carburizing and grinding, ensuring smooth power transfer, low noise (<75dB), and minimal wear.
- Centralized lubrication system automatically delivers oil to guide rails, lead screws, and bearings, reducing manual maintenance and extending component lifespan.
3,600.00$
| Attribute Category | Specific Item | Specification | Unit |
|---|---|---|---|
| Basic Information | Model | CA6261 (Horizontal Lathe) | - |
| Basic Information | Machine Type | Heavy-Duty General-Purpose Lathe | - |
| Machining Capacity | Max Swing Diameter Over Bed | 610 | mm |
| Machining Capacity | Max Swing Diameter Over Cross Slide | 380 | mm |
| Machining Capacity | Max Processing Length (Optional) | 1500 / 2000 / 3000 / 5000 | mm |
| Spindle System | Spindle Speed Range | 8 - 1250 | r/min |
| Spindle System | Spindle Bore Diameter | 80 | mm |
| Spindle System | Spindle Taper Hole | Morse No.7 | - |
| Tool Post System | Tool Post Type | 4-Station Square Turret (Manual) | - |
| Tool Post System | Max Tool Shank Size | 40×40 | mm |
| Feed System | Longitudinal Feed Rate Range | 0.06 - 12.5 | mm/r |
| Feed System | Cross Feed Rate Range | 0.03 - 6.25 | mm/r |
| Power System | Main Motor Power | 11 / 15 (Optional) | kW |
| Power System | Cooling Pump Power | 0.37 | kW |
| Structural Dimensions | Overall Dimensions (L×W×H, 1500mm length) | approx. 4200×1800×1600 | mm |
| Structural Dimensions | Net Weight (1500mm length) | approx. 5800 | kg |
