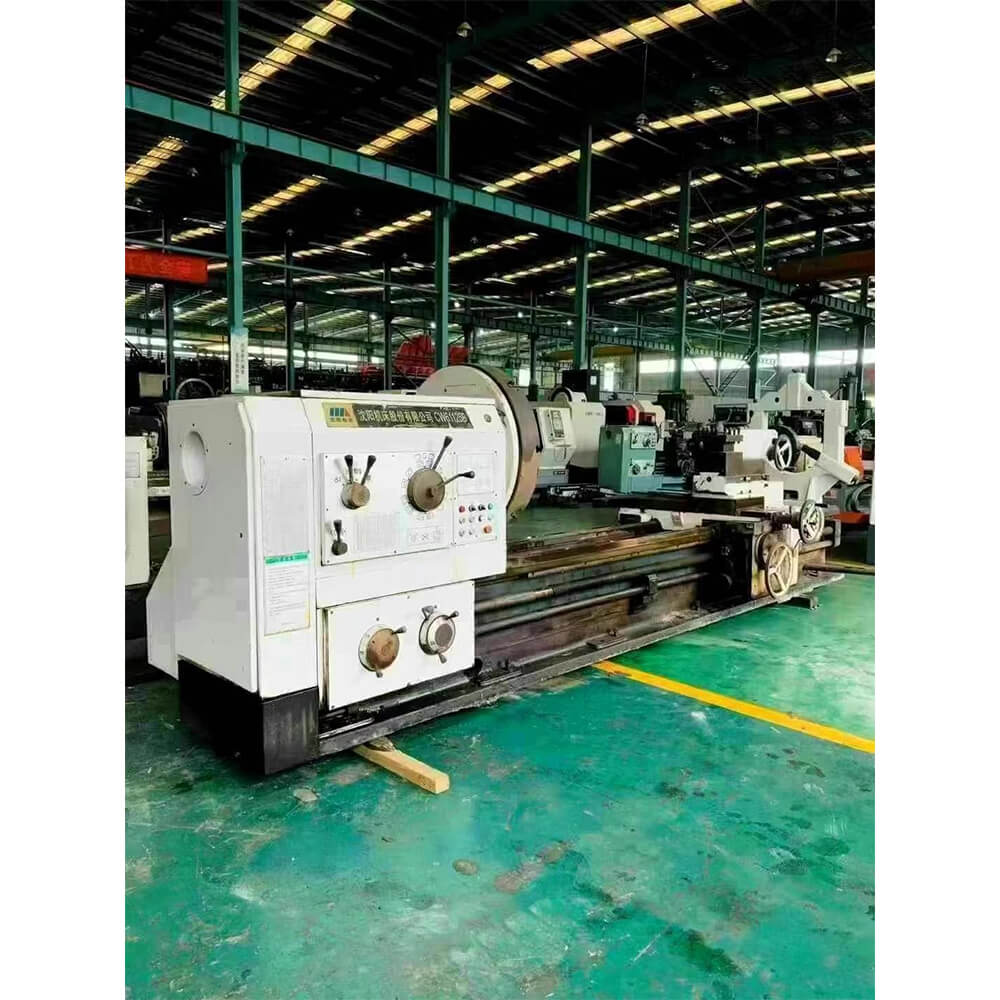

Shenyang CW61125B Lathe

Functional Capabilities:

Versatile Machining: Supports turning, boring, threading (metric/imperial/module/diametral pitch), grooving, and facing
Fast Tool Movement: Rapid traverse speeds of 3,740 mm/min (longitudinal) and 1,870 mm/min (transverse) reduce non-cutting time.
Heavy Load Capacity: Up to 6,000 kg workpiece weight, ideal for aerospace, shipbuilding, and energy sectors
1. - - Key Advantages
      1. Exceptional Rigidity & Stability:

        The reinforced bed and wide guideways minimize deflection during heavy cuts, ensuring dimensional accuracy (IT6-IT7) and surface finishes as fine as Ra 1.6–2.5 μm.

        High-tensile cast iron construction and vibration-damping properties reduce chatter, critical for machining hard materials like alloy steel or cast iron.
      2. Heavy-Duty Performance:

        22 kW motor and gear-driven spindle deliver torque-intensive cutting, making it suitable for roughing large workpieces with minimal power loss.

        Hydraulic clutch system enables smooth, no-stall speed changes and rapid braking, enhancing operational safety沈阳第一机床制造有限公司.
      3. Precision & Repeatability:

        Spindle runout ≤0.01 mm and backlash-free feed mechanisms ensure consistent results across batches.

        Optional digital readouts (DRO) further enhance positioning accuracy for complex geometries.
      4. Ease of Maintenance:

        Industries served include oil/gas, power generation, railway, and general heavy manufacturing.

        Adaptable to custom tooling (e.g., boring bars, thread chasers) for specialized operations.

5,500.00$

The Shenyang CW61125B combines brute force with precision, making it a cornerstone for workshops requiring heavy-duty turning capabilities. Its robust design, wide speed range, and ease of use position it as a reliable choice for both large-scale production and repair/maintenance tasks. Whether machining locomotive axles or industrial rolls, this lathe delivers unmatched performance and value.

Items	Details
Swing over bed	1000/1250 mm
Distance between centers	1500/3000/5000 - 15000 mm
Swing over cross slide	610/850 mm
Spindle bore diameter	130 mm
Front taper of spindle hole	Metric 140
Number of forward spindle speeds	21
Number of reverse spindle speeds	12
Range of tool post feed per spindle revolution	56
Longitudinal feed	0.1 - 12 mm
Cross feed	0.05 - 6 mm
Upper tool post feed	0.025 - 3 mm
Metric thread pitch range	44 kinds, 1 - 120 mm
Inch thread range	31 kinds, 24 - 1/4 t.p.i
Module thread range	45 kinds, 0.5 - 60 mm
Diametral pitch thread range	38 kinds, 1/2 - 56 DP
Saddle travel	Workpiece length minus 50 mm
Cross travel of lower tool post	520 mm
