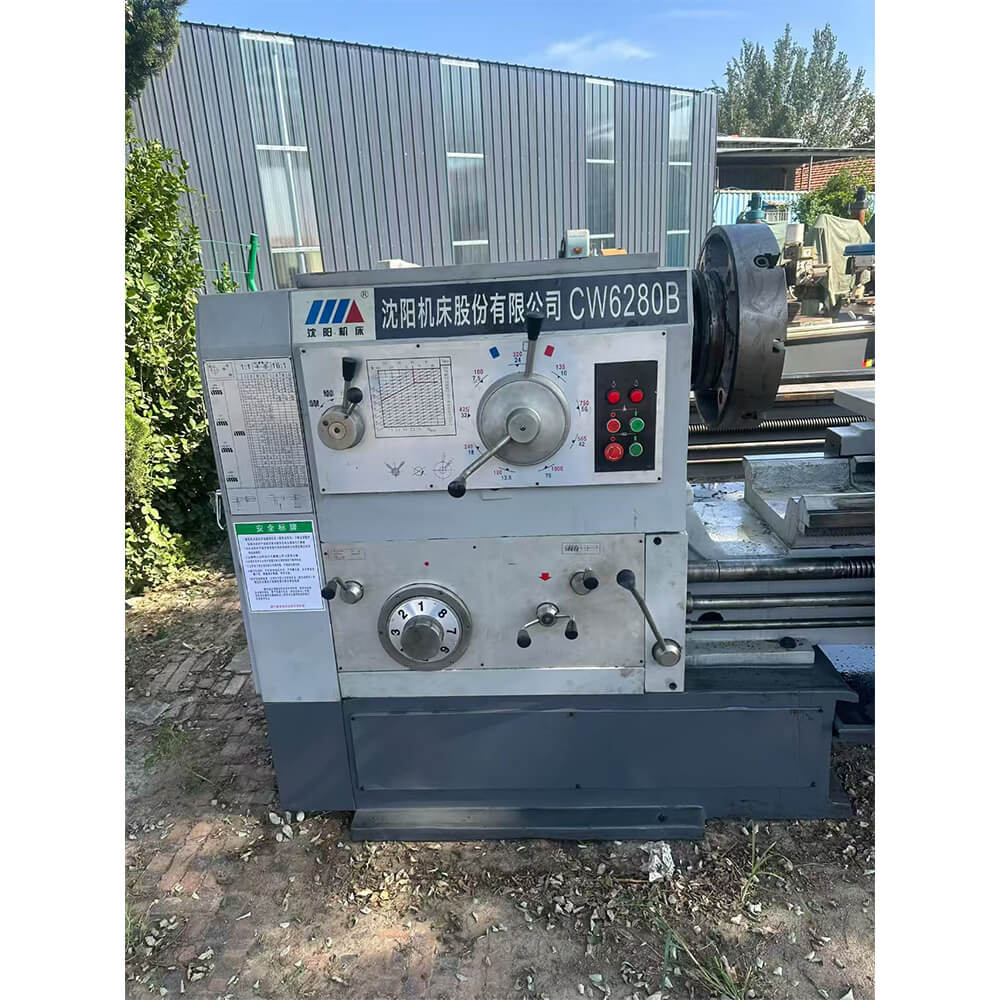

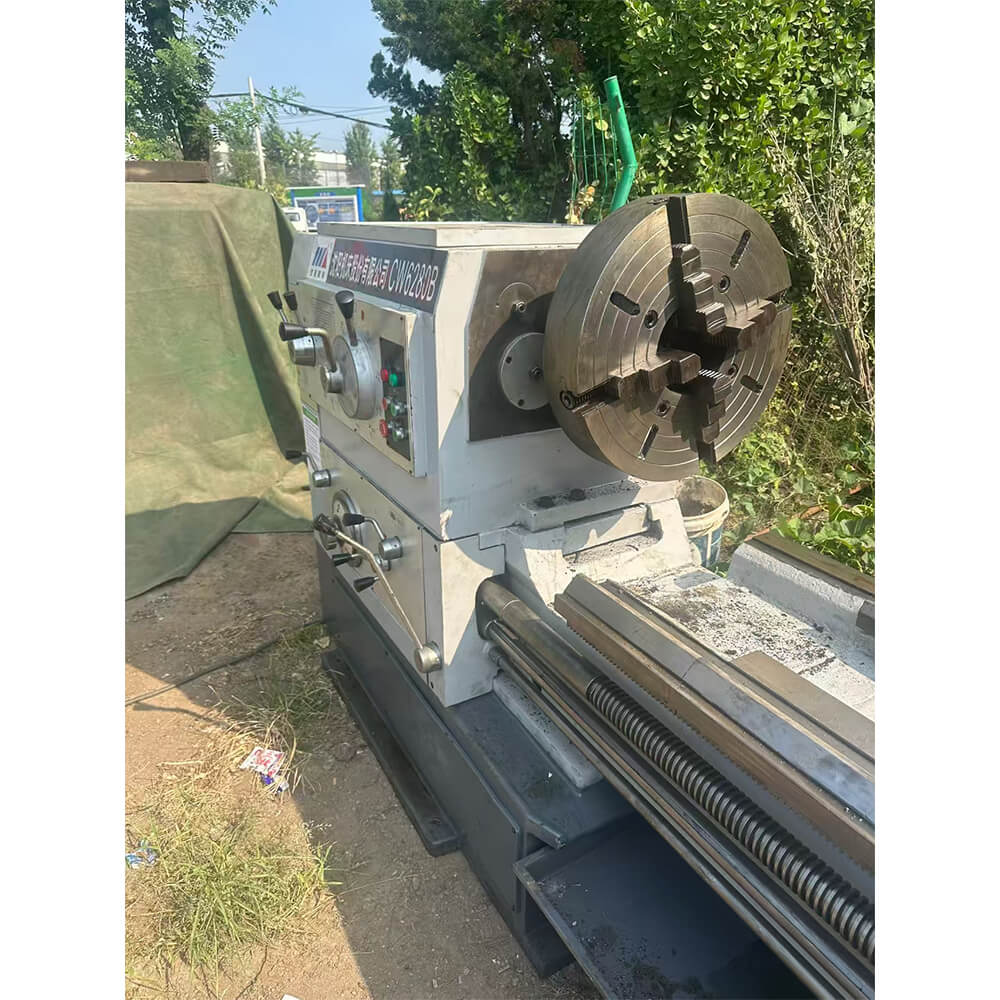

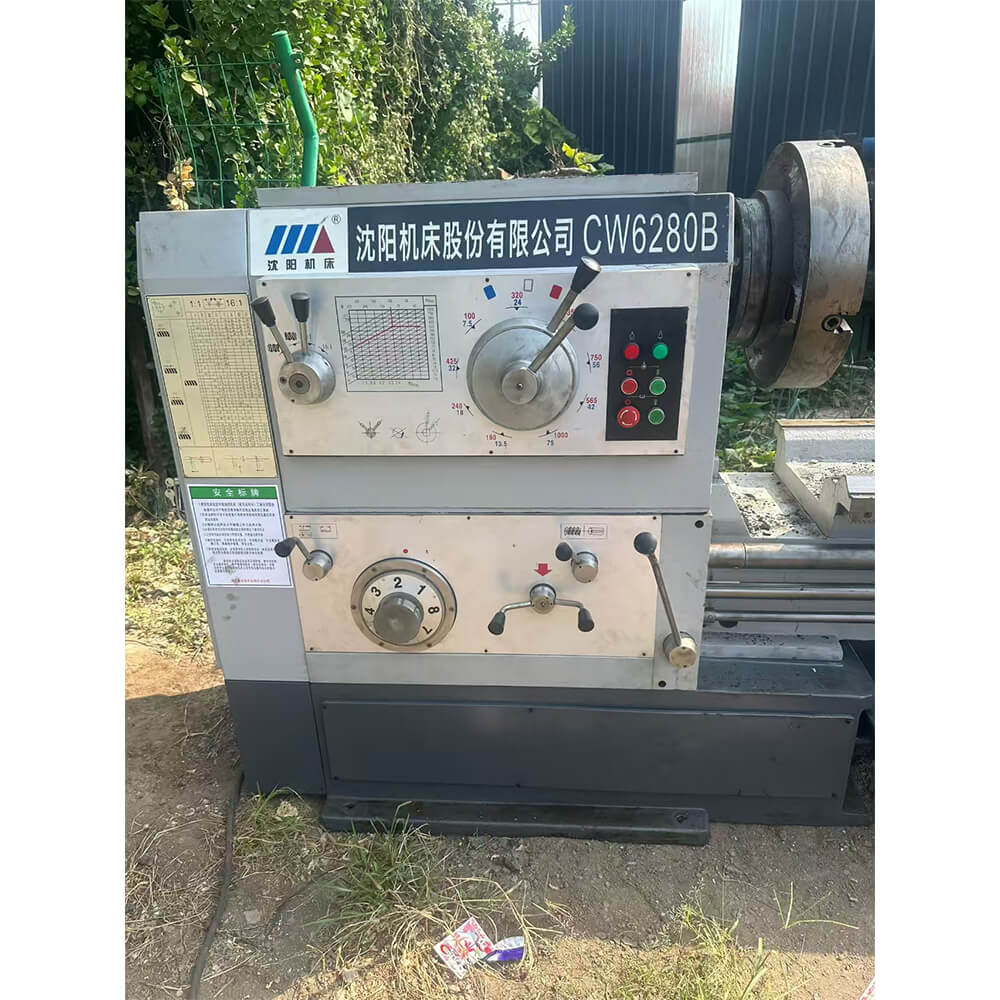

The Shenyang CW6280B 3000mm is a heavy‑duty conventional horizontal lathe with a gap‑bed design, manufactured by Shenyang Machine Tool (SMTCL). It is engineered for high‑rigidity, heavy‑cutting, and precision turning of large‑scale workpieces, widely used in machinery manufacturing, mining, shipbuilding, and heavy engineering industries.Heavy‑Duty Structure: The bed features wide side double‑rib plates and internal box‑type & diagonal rib construction, increasing overall rigidity by 30% compared to single‑wall portal rib designs.
Gap‑Bed Design: Allows turning of large‑diameter workpieces up to 1000mm in the gap section.
High‑Precision Spindle: 104mm spindle bore, MT5 taper, 18‑speed gear head (7.5–1000 r/min), powered by an 11kW main motor for stable heavy cutting.
Superior Guideways: Bed ways with TSF wear‑resistant inlay for smooth movement and long service life.
Hydraulic Control: Hydraulic spindle forward/reverse and braking, with optional manual/foot brake for safe operation.
