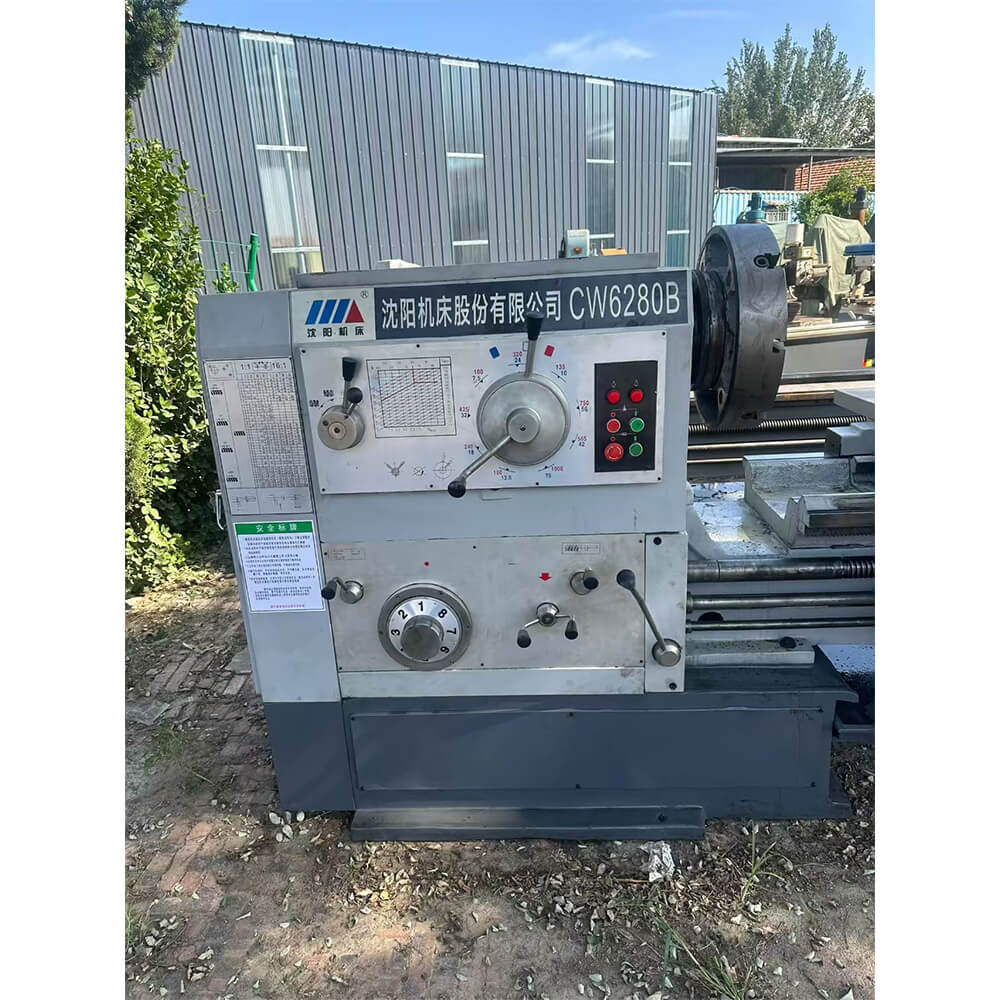

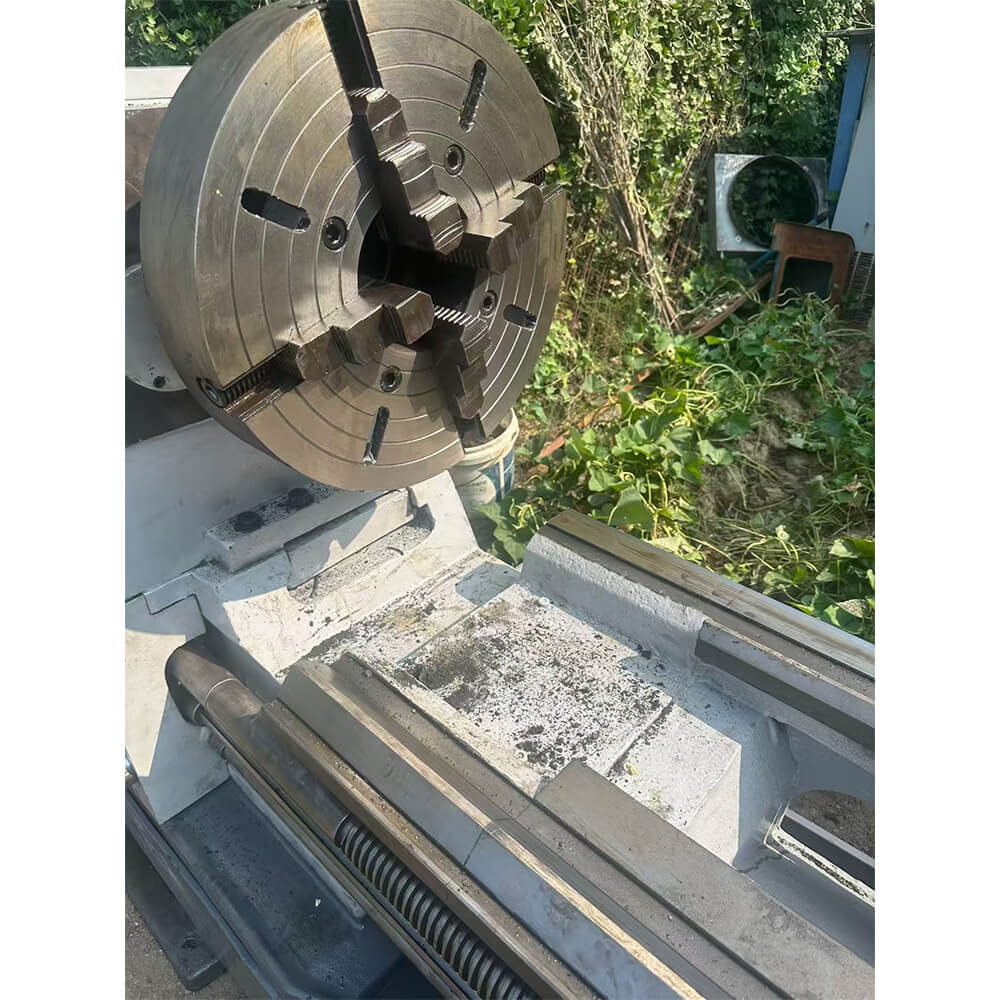

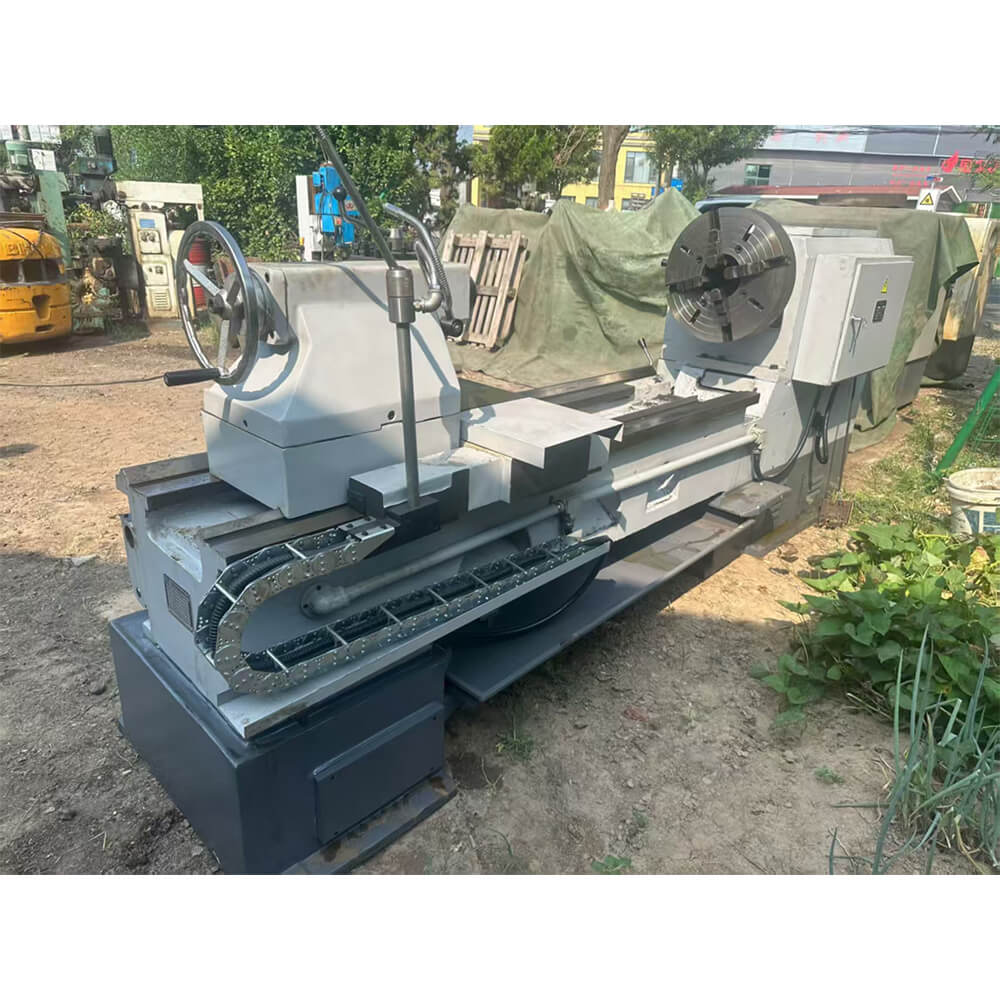

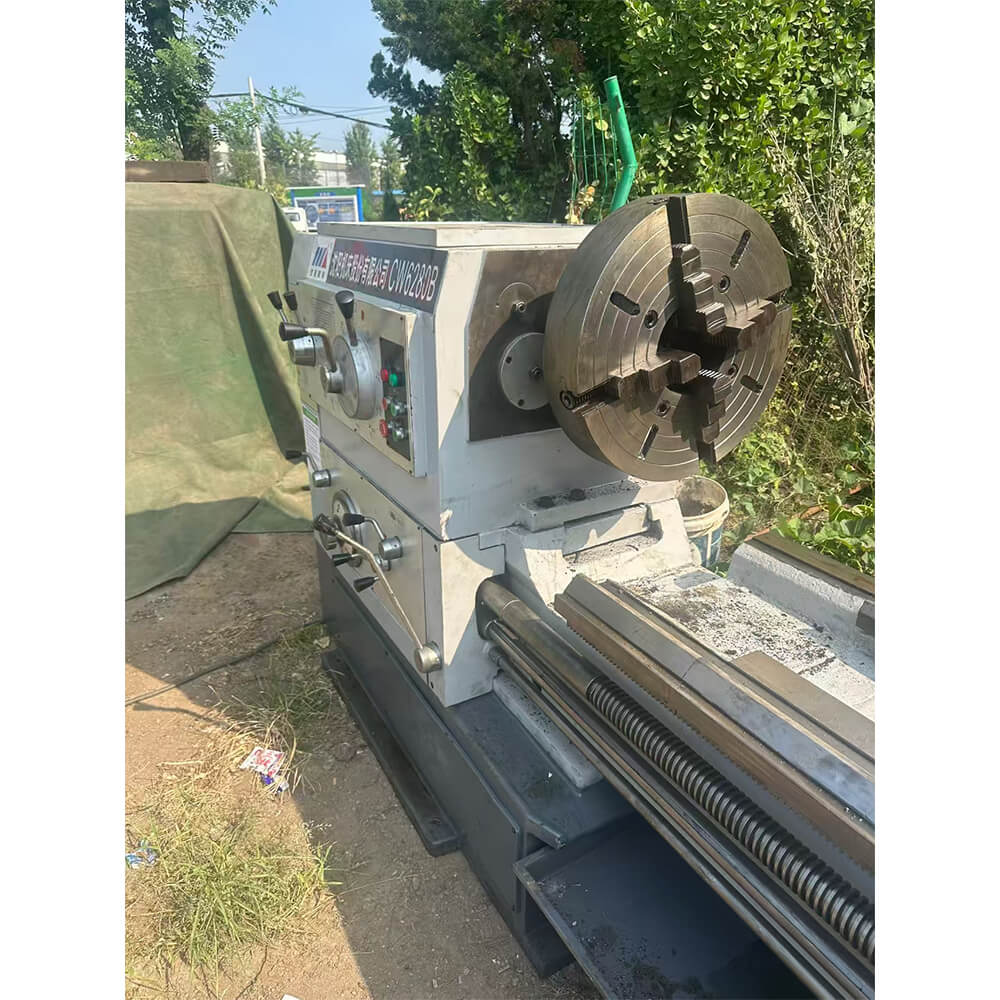

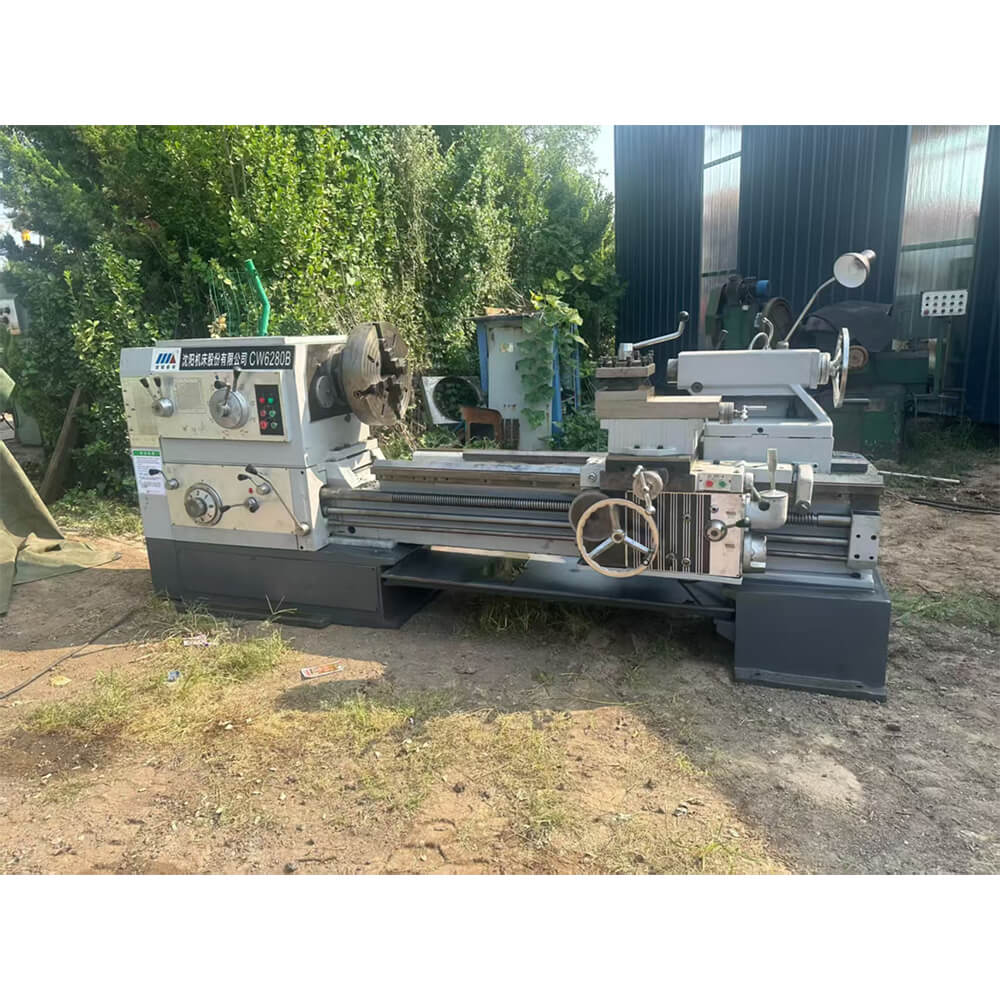

Shenyang CW6280B Lathe

This machine tool has high power and strong rigidity, making it suitable for heavy-duty cutting. It can handle various turning operations, such as turning internal and external cylindrical surfaces, conical surfaces, end faces, and various common threads. It can also perform drilling, trepanning, boring, broaching oil grooves, keyways, and other operations. It can process materials such as cast iron, steel, and various non-ferrous metals.

6,428.00$

Technical Specifications:
Maximum Turning Diameter: The maximum turning diameter on the bed is 800mm, and the maximum turning diameter on the tool holder is 480mm.
Maximum Turning Length: Depending on the configuration, there are various specifications. Common ones include 1500mm, 2000mm, 3000mm, and 4000mm, etc.
Spindle Speed Range: 10 - 1000 r/min (stepless speed variation, the specific number of gears and speed distribution are subject to the actual configuration of the equipment)
Feed Rate:
Longitudinal Feed: Longitudinal feed range: 0.06 - 1.8mm/r
Transverse Feed:Transverse feed range: 0.03 - 0.9mm/r
Spindle Hole Diameter: 105mm
Motor Power: The power of the main motor is 11kW (or 15kW in different configurations, the actual power shall be based on the equipment nameplate)

Application Industry:The Shenyang Machine Tool CW6280B, as a heavy-duty horizontal lathe, with its powerful processing capabilities, is mainly applied in the following fields: the mechanical manufacturing industry, the energy equipment sector, the transportation industry, the mold processing industry, and the maintenance and remanufacturing sector.
