The Shenyang – type ordinary lathe C6140 is a widely – used metal – cutting machine tool in the mechanical processing field, featuring a compact structure, simple operation, and high processing accuracy.

Application Fields4
- Machine Tool Industry: It is used for processing various machine – tool parts, such as spindles, beds, guide rails, etc.
- Vehicle Manufacturing Industry: It is used for processing various parts of vehicles such as cars, tractors, and motorcycles.
- General Machinery Industry: It is used for processing various general – machinery parts, such as gears, shafts, bearings, etc.
- Instrument and Meter Industry: It is used for processing various instrument and meter parts.

4,050.00$

Main Technical Parameters5
- Processing Capacity: The maximum swing diameter on the bed is 400mm, and the maximum processing diameter of the workpiece is also 400mm. The maximum processing length of the workpiece is usually 750mm, 1000mm or 1500mm.
- Spindle Parameters: The spindle speed range is generally 28 - 1800r/min, with 12 levels of speed regulation. The spindle inner hole taper is Morse No. 6, and the spindle through - hole diameter is 52mm, which is convenient for passing through long - bar workpieces and facilitating the installation of some tools.
- Feed Parameters: The metric thread range is 0.5 - 14mm, with 21 kinds; the inch - thread range is 72 - 2.5TPI, with 30 kinds; the module thread range is 0.25 - 7m, with 17 kinds; the diametral pitch thread range is 144 - 5D.P, with 30 kinds.

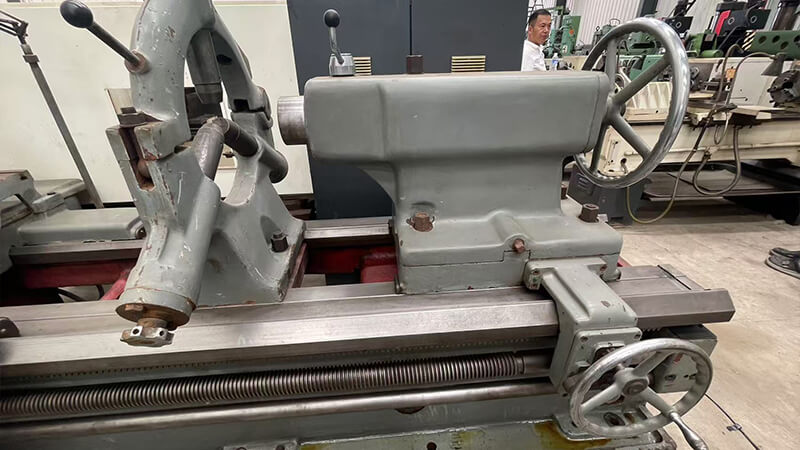

- Tailstock Parameters: The tailstock sleeve taper is Morse No. 5, the tailstock sleeve diameter is 65mm, and the tailstock sleeve stroke is 160mm, which can be used for supporting long - shaft workpieces and installing drill bits and other tools for hole processing.
- Motor Power: The main motor power is 5.5kW, which provides the necessary power for cutting.
