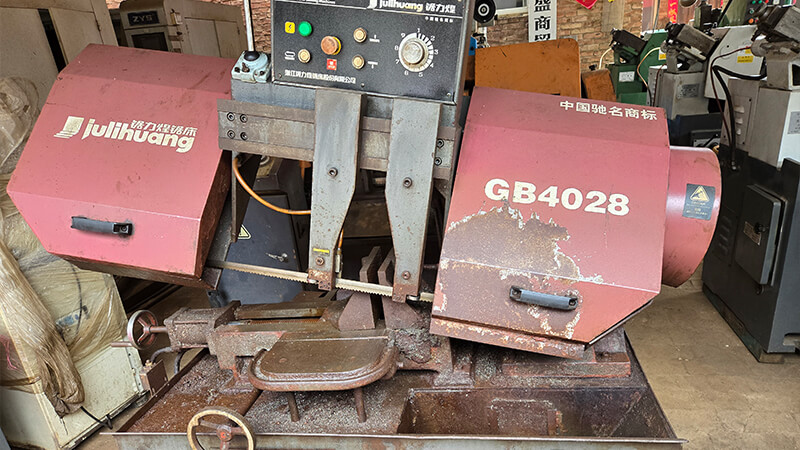

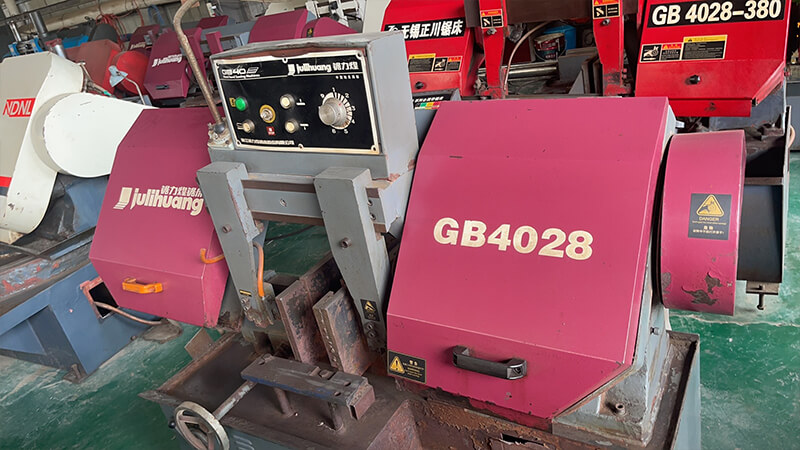

Used Sawing Machine GB4028

Product Attribute	Details
Model	GB4028
Sawing Capacity	Φ280mm（round material）；280x280mm（rectangular material）
Balde Speed	24, 41.5, 52.74m/min
Balde Size	3505×27×0.9mm
Main Motor Power	2.2kW
Hydraulic Power	0.75kW
Cutting Fluid Capacity	40L
Hydraulic Fluid Capacity	50L
Machine Size	1850x1180x1330mm
Machine Weight	1000kg
Application	Mainly used for sawing various ferrous and non – ferrous metals
Features	Hydraulic control for sawing, stepless speed regulation of feed speed. Small materials can be sawn in bundles, high production efficiency

4,050.00$

Efficient and Energy - saving: It adopts a scissors - type horizontal structure, which features fast cutting speed, high efficiency, and energy - saving.
Material - saving: The saw seam is narrow, which can save materials and reduce production costs.
Stepless Speed Regulation: The feed speed of the saw blade is hydraulically controlled, enabling stepless speed regulation. This allows for arbitrary adjustment to the optimal cutting speed according to different materials and processing requirements, improving cutting efficiency and quality.
Long - lasting Saw Blade: The band saw blade is guided by rolling bearings and tungsten carbide, which can effectively reduce the wear of the saw blade and extend its service life.
Convenient Operation: It is equipped with a human --machine - friendly control panel, allowing users to easily set and adjust parameters. Functions such as overload protection and emergency stop are provided to ensure safe operation. In addition, the machine tool is easy to operate and maintain.
Stable Output: The main machine adopts a standard turbine box and pulley for speed change, with stable output, which can ensure the stability of the cutting process and the accuracy of the cut surface.
Quick and Easy Clamping: The hydraulic clamping is controlled by a solenoid valve, which is fast and convenient, ensuring that the workpiece is firmly fixed during the cutting process to prevent displacement.
