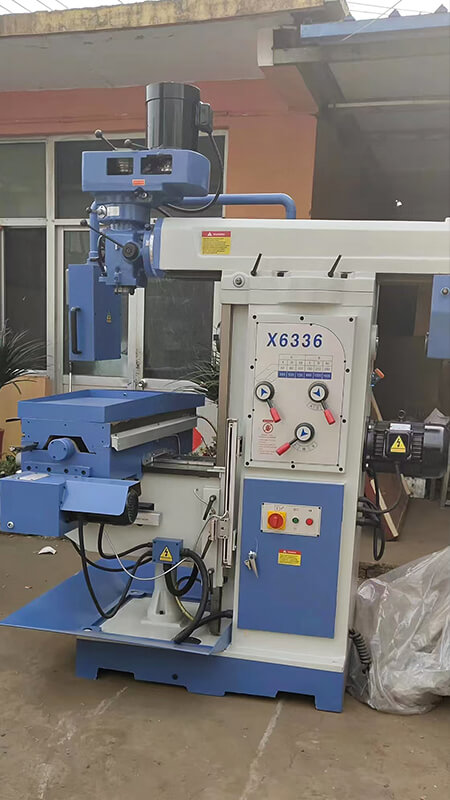

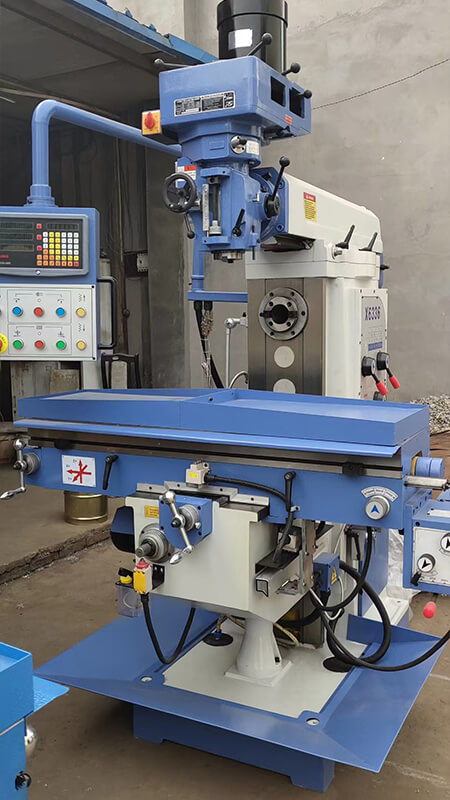

X6336 Milling Machine

The X6336 milling machine is a versatile horizontal/vertical knee-type turret milling machine widely used in metalworking industries for precision machining of flat surfaces, grooves, gears, and complex contours. Below is a detailed breakdown of its technical parameters based on industry standards and manufacturer specificationsschulermachinery.com:

1. Worktable Specifications

Table Size:

Standard dimensions range from 1250×360 mm to 1500×360 mm, depending on the manufacturer. The table surface is typically made of HT200-250 high-strength cast iron, hardened by supersonic frequency quenching (depth 2–4 mm) for durabilityschulermachinery.com.
Travel Range:
- X-axis (Longitudinal): 1000 mm
- Y-axis (Cross): 320 mm
- Z-axis (Vertical): 400–450 mm
- Rapid Feed Speed: X/Y: 1000 mm/min; Z: 400 mm/minschulermachinery.com.
Load Capacity:

Maximum workpiece weight: 400–800 kg.
T-slot Configuration:

3 slots with dimensions 18 mm wide × 80 mm spacingschulermachinery.com.

2. Spindle System

Spindle Taper:
- Vertical: ISO40 (NT40)
- Horizontal: ISO50 (NT50)schulermachinery.com.
Spindle Speed Range:
- Vertical Milling: 16-step variable speed from 66–4540 RPM (50 Hz) or 80–5440 RPM (60 Hz)schulermachinery.com.
- Horizontal Milling: 12-step variable speed from 60–1800 RPM.
Spindle Travel:

127–145 mm (manual/auto feed)schulermachinery.com.
Spindle Power:
- Vertical motor: 3.7 kW
- Horizontal motor: 4 kW
- Optional upgrades available (e.g., 5.5 kW for heavy-duty applications).

3,600.00$

Specific Attribute	Detailed Description

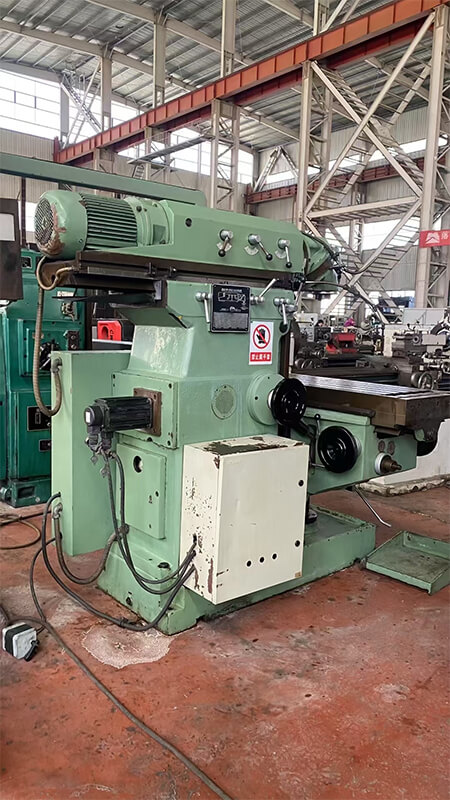

Equipment Type	Horizontal universal milling machine (heavy-duty, high-precision)
Core Function	Heavy-duty milling, precision processing of large/complex parts; supports grooves, planes, gears
Operation Features	Heavy-duty cutting capability, large worktable, manual/semi-automatic operation
Worktable Dimensions	Approximately 1600mm×360mm (length×width)
Spindle Speed Range	30-1800r/min (18 adjustable speed levels)
Worktable Travel	Longitudinal: up to 800mm; Transverse: up to 360mm; Vertical: up to 400mm
Feed Rates	0.05-5mm/r (mechanical); 0.01mm/r (servo, optional)
Maximum Processing Capacity	Milling width up to 360mm (steel); suitable for large parts and batch processing
Main Motor Power	7.5kW
Overall Dimensions	Approximately 2500mm×1800mm×2200mm (length×width×height); net weight: ~3500kg
Bed and Column	Thickened cast iron, box-type structure, double aging treatment, high rigidity
