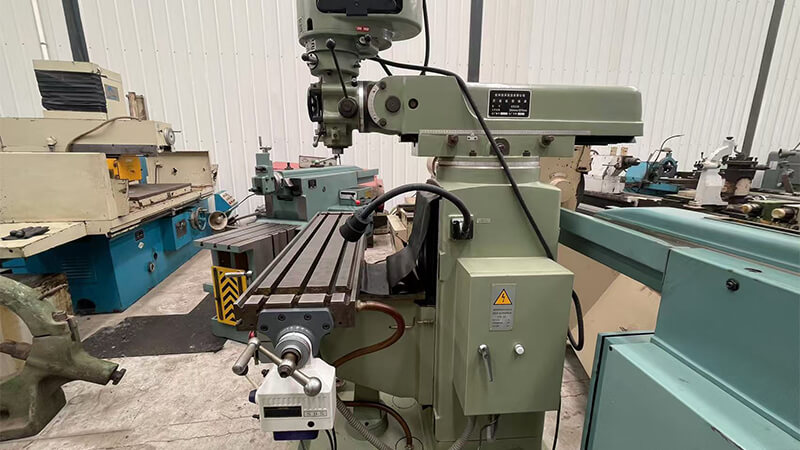

XA5032 used Milling Machines
| Parameter Item | Specific Specifications |
|---|---|
| Worktable Size | 1250mm×320mm (Length × Width) |
| Spindle Speed Range | 30-1500r/min (18 speed levels) |
| Maximum Mechanical Feed Speed | 3mm/r (longitudinal), 2.3mm/r (transverse/vertical) |
| Maximum Processing Range | 800mm (longitudinal), 320mm (transverse), 400mm (vertical) |
| Distance from Spindle End to Worktable | 30-430mm (adjustable, suitable for workpieces of different heights) |
| Main Motor Power | 7.5kW (providing sufficient cutting power) |
| Net Weight of Machine | Approximately 2200kg (ensuring overall rigidity) |
2,363.00$
Advantages of the Equipment
- Strong Rigidity and Stable Cutting: The integrally cast bed and column have high deformation resistance, reducing vibration during high-speed cutting and ensuring processing accuracy (flatness and perpendicularity up to IT8-IT9 grades).
- High Versatility: By replacing tools and fixtures, it can complete multiple processing procedures, reducing the frequency of equipment replacement and being suitable for small-batch and multi-variety production.
- Flexible Operation: It supports switching between manual feeding (for fine adjustment) and mechanical feeding (for efficient cutting). It is easy for beginners to learn, and skilled operators can improve processing efficiency through techniques.
- Convenient Maintenance: The transmission system has a classic structure, with easily available accessories. Daily maintenance (such as lubrication and guideway cleaning) is simple, and its service life is long (stable operation for more than 10 years under normal maintenance).
